UYGALAXY Mini Electric Linear Actuator Stroke 2" with Momentary Switch 32N/7lb Speed 1.2"/sec Waterproof Metal 50mm Micro Motion Actuator with Mounting Bracket for Robot Cabinet Shutter Cosplay
Brand: UYGALAXY
Condition: Used
$3419
$3599
-5% Save $180
Updated: 3 days ago
Description
Linear Actuator With Momentary Switch Kit: 12VDC Linear Actuator Stroke Length= 2inch(50mm); Travel speed= 1.2 inch/sec (30 mm/s), force 32N(7lbs) . With the waterproof DPDT reverse polarity switch controls linear actuator UP/DOWN.
Made of Metal Material: Our micro linear actuator made of high quality aluminum, IP65 waterproof, and the both ends made of metal material, it's updated design to avoid the extend and retract rod breaks when overweight. Built-in limit switch that can stop at any position, automatically stop when It reaches the top.
Momentary Switch: Reverse polarity rocker push switch with ON/ON operation press button, only move when the up or down rocker switch is being actively pressed with your finger. The DC load will stop when the switch is not being pressed with your finger. The 25amp, max 250V switch to accommodate larger DC loads.
Widely used: Lightweight and compact motion linear actuator, suitable for your DIY project. Like pet feeder, home automation, robot's gripper, toys, cabinet door, drawer, shutter, deck chair and so on. When Halloween festivals or cosplay show coming, it enhences your wearable devices, like the spread wings for hawk cosplay.
Easy set up & Safe: Package included 1pc mini linear actuator, 2 bracket sets and 1pc momentary switch. Quick mounted by using brackets, connected the red wire positive and black wire to negative, and connected 12-volt safe power supply positive and negative. Press on switch to control your actuator up and down.
UYGALAXY Mini Linear Actuator with Momentory Switch for up and down, which is used for your home, such as home automation, cabinet door, drawer, shutter.
And also used for your DIY project, such as robot arms, toys, cosplay.
Great for electric open chicken coop/pigeon/rabbit cage/pet nest door.
Specification:
Input Voltage: DC 12V
Working current: 0.2A
Stroke Length: 2in/50mm
Retracted Length = 105 mm( 4.1")
Extended Length = 155 mm( 6.1")
Material: Aluminum alloy
Load capacity: 7lb/32N
Speed: 1.2"/sec(30mm/s)
Waterproof Protection: IP65
Duty cycle: 10%
Working Temperature: -13℉~+140℉

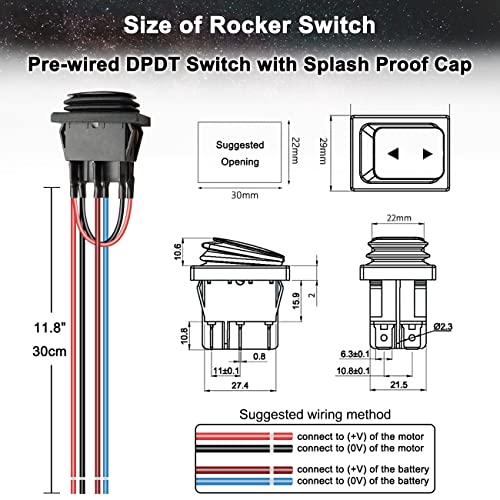

Momentary Switch
PIN: 6 pin
Type:DPDT.
Position: ON-ON .
Feature:
Low noise design, noise level less than 50dB.
Compact size and lightweight, easy to install with mounting bracket.
Built-in limit switch that it will turn off power when the device reaches the end of stroke to protect motor. It will hold its position when the power is off.
Made of high quality aluminum, more safe & well constructed for long-term use.
How to protect your actuator?
The actual load does not exceed the rated load. Please use the 12V DC power battery. If use smaller voltage, product can not work well, use bigger voltage maybe will damage to the product.
It should be noted that the mini linear actuator is in extreme operating conditions for a long time will reduce product life.
Please don't store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
When soldering is required on the positive and negative power supply's motor terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time.
Package Included:
1 x 2in Mini Linear Actuator
2 x Mounting Brackets
1 x Momentary Switch
And also used for your DIY project, such as robot arms, toys, cosplay.
Great for electric open chicken coop/pigeon/rabbit cage/pet nest door.
Specification:
Input Voltage: DC 12V
Working current: 0.2A
Stroke Length: 2in/50mm
Retracted Length = 105 mm( 4.1")
Extended Length = 155 mm( 6.1")
Material: Aluminum alloy
Load capacity: 7lb/32N
Speed: 1.2"/sec(30mm/s)
Waterproof Protection: IP65
Duty cycle: 10%
Working Temperature: -13℉~+140℉
Momentary Switch
PIN: 6 pin
Type:DPDT.
Position: ON-ON .
Feature:
Low noise design, noise level less than 50dB.
Compact size and lightweight, easy to install with mounting bracket.
Built-in limit switch that it will turn off power when the device reaches the end of stroke to protect motor. It will hold its position when the power is off.
Made of high quality aluminum, more safe & well constructed for long-term use.
How to protect your actuator?
The actual load does not exceed the rated load. Please use the 12V DC power battery. If use smaller voltage, product can not work well, use bigger voltage maybe will damage to the product.
It should be noted that the mini linear actuator is in extreme operating conditions for a long time will reduce product life.
Please don't store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
When soldering is required on the positive and negative power supply's motor terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time.
Package Included:
1 x 2in Mini Linear Actuator
2 x Mounting Brackets
1 x Momentary Switch
