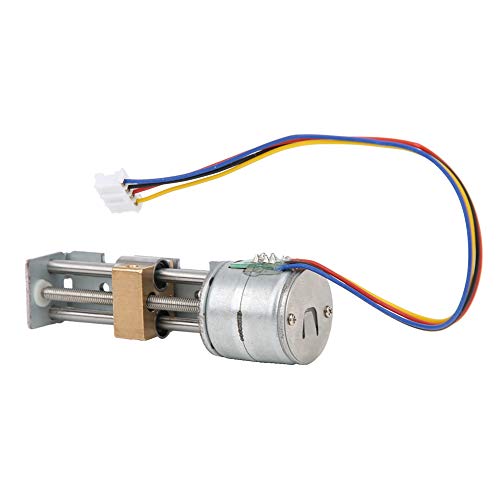

20mm Mini Linear Stage Actuator 2 Phase 4 Wire Stepper Motor with Reducer Small Slide Rail for DIY Sliders Measuring Equipment Printers
Brand: Walfront
Condition: Used
$2582
$2924
-12% Save $342
Updated: 3 days ago
Description
[Detailed Specifications] -- Featuring a 2-phase 4-wire system with specs including screw length, slider stroke, motor diameter, and more, this motor is designed for precision and efficiency.
[All-metal Structure] -- Made with a robust design, this miniature 2-phase 4-wire stepper motor with a planetary offers exceptional durability for long-lasting use.
[High-performance Motor] -- Operating at 5-9v/200-600ma, this motor delivers high power output, making it suitable for tasks requiring increased force and performance.
[ Metal Build] -- The metal bracket ensures added strength and longevity, providing support for the motor and assembly.
[ and Versatile] -- Drive diagonal movements and smoothly adjust the metal slider for various applications, ideal for diy projects, measuring equipment, and printers.
Spec:
Item Type: Stepper Motor
Motor Type: 2-phase 4-wire system
Drive Voltage: 5-9V/200-600mA (the higher the voltage, the greater the force, the greater the heat)
Screw Length: Approx. 45mm / 1.8in
Slider Stroke: Approx. 34mm / 1.3in
Motor Diameter: Approx. 20mm / 0.8in
Screw Diameter: Approx. 3mm / 0.1in
Screw Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smaller)
Step Angle: 18°
Phase : 21Ω
Blue A+Black B+Red B-Yellow A-
Package List:
1 x Stepper Motor
Note:
Note that it is a stepper motor, it will not turn when directly connected to the power, and a stepper motor driver board and control board.
[HIGH-PERFORMANCE MOTOR] - The motor operates with a driving voltage of 5‑9V/200‑600mA. The higher the voltage, the greater the force and heat produced.
[METAL STRUCTURE] - The bracket is mainly made of metal for added strength and durability.
[SPECIFICATIONS] - Motor Type: 2-phase 4-wire system; Drive Voltage: 5-9V/200-600mA; Screw Length: Approx. 45mm / 1.8in; Slider Stroke: Approx. 34mm / 1.3in; Motor Diameter: Approx. 20mm / 0.8in; Screw Diameter: Approx. 3mm / 0.1in; Screw Pitch: Approx. 0.5mm / 0.02in; Step Angle: 18°; Phase : 21Ω; Blue A+Black B+Red B-Yellow A-.
Item Type: Stepper Motor
Motor Type: 2-phase 4-wire system
Drive Voltage: 5-9V/200-600mA (the higher the voltage, the greater the force, the greater the heat)
Screw Length: Approx. 45mm / 1.8in
Slider Stroke: Approx. 34mm / 1.3in
Motor Diameter: Approx. 20mm / 0.8in
Screw Diameter: Approx. 3mm / 0.1in
Screw Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smaller)
Step Angle: 18°
Phase : 21Ω
Blue A+Black B+Red B-Yellow A-
Package List:
1 x Stepper Motor
Note:
Note that it is a stepper motor, it will not turn when directly connected to the power, and a stepper motor driver board and control board.
[HIGH-PERFORMANCE MOTOR] - The motor operates with a driving voltage of 5‑9V/200‑600mA. The higher the voltage, the greater the force and heat produced.
[METAL STRUCTURE] - The bracket is mainly made of metal for added strength and durability.
[SPECIFICATIONS] - Motor Type: 2-phase 4-wire system; Drive Voltage: 5-9V/200-600mA; Screw Length: Approx. 45mm / 1.8in; Slider Stroke: Approx. 34mm / 1.3in; Motor Diameter: Approx. 20mm / 0.8in; Screw Diameter: Approx. 3mm / 0.1in; Screw Pitch: Approx. 0.5mm / 0.02in; Step Angle: 18°; Phase : 21Ω; Blue A+Black B+Red B-Yellow A-.
