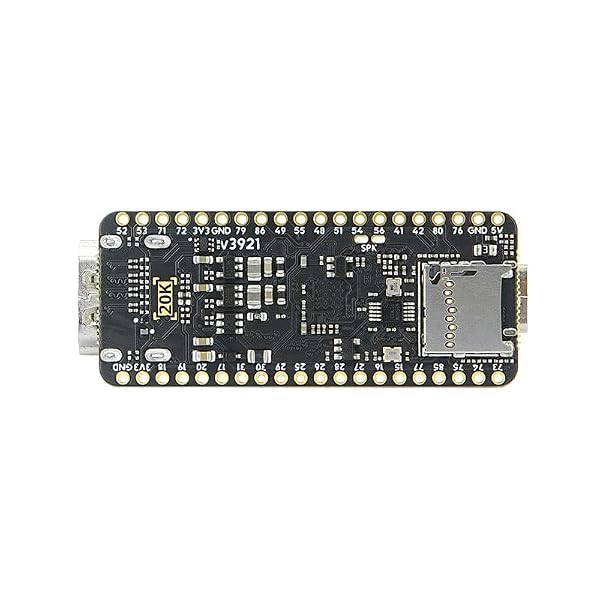

Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port — Open-Box, 17% Off

[FPGA Chip] GW2AR-18 QN88 FPGA Chip containing 20736 LUT4 logic cells and 15552 Filp-Flops.There are 2 PLL in this FPGA chip, and many DSP units supporting 18 bit x 18 bit multiplication [Onboard Debugger ] Sipeed Tang Nano 20K Development Board support JTAG for FPGA, USB to UART for FPGA,USB to SPI for FPGA communication, Control MS5351 generate frequency [USB2.0 HS interface] The 27MHz crystal generates the clock for HDMI display, onboard MS5351 clock generating chip also provides mutiple clocks.Support Serial communication, high-speed SPI reception. [Application scenarios] Tang Nano 20K Open source Development Board supports game console emulators, drives RGB screens, multiple display outputs, 20K LUT4, RISC-V soft-core experiments. [Wiki] "dl.sipeed.com/shareURL/TANG/Nano_20K/1_Datasheet";Any after-Sales Privems, Please Contact us by click "Waypondev" store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

-Specification-

FPGA Chip: GW2A-LV18QN88C8I7

Logic units(LUT4): 20736

Flip-Flop(FF): 15552

Shadow SRAM (S-SRAM)(bits): 41472

Block SRAM (B-SRAM)(bits): 828K

Numbers of 18x18 Multiplier: 48

Onboard debugger: BL616

Clock generator: MS5351,provide extra 3 clocks for FPGA

Display interface: 40Pins RGB lcd connector/ HDMI interface

LED:6,Low voltage level enable

RGB LED:1,WS2812

User key: 2

TF Card Slot: 1

PCM Amplifier: 1,MAX98357A，for audio driving

Storage: 64Mbits Flash,To save bitstream

Size: 22.55mm x 54.04mm x 5mm
