Description

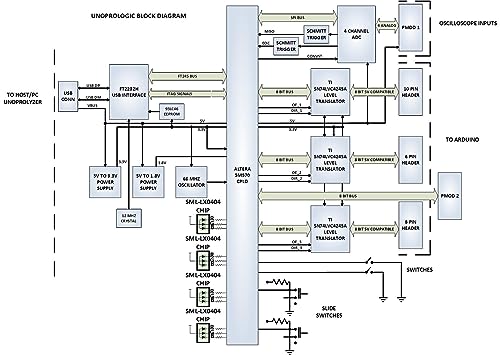

The UnoProLogic is a complete Development board featuring the Altera 5M570 CPLD. The board includes a USB to Serial interface. The USB to Serial Interface provides an on board programming of the CPLD using JTAG and provides bidirectional communications with a Host PC. The 5M570 CPLD has 440 MacroCells and on chip Flash to store user code once the power is removed. The MAX V CPLD is a great chip to learn programmable logic with. The MAX V is a complete chip programmed using JTAG. The chip can be re-programmed thousands of times making it perfect for development projects. The UnoProLogic board comes complete with all regulators, oscillators and connectors to provide a complete development system for beginners. On Board Four Channel ADC with 300KB/sec Sample Rate. Inputs/Outputs: 24 -- 5 Volt tolerant. I/O's are protected with 74LVCH4245 8-Bit Bus transceivers. USB Interface: 480 Mbps data transfers. User code will transparently connect with the ActiveHost API running on the Windows API. All software is Open Source JTAG Programmer: The 5M570 is programmed by the FT2232H Chip Through the Quartus Software. All that is needed to program the board is a USB-C cable. Just connect to an open USB port on your Windows Laptop. Then program using the Altera Quartus Prime Lite Software. The Quartus software is free and downloaded from the Altera website. The UnoProLogic user manual walks the user through the Getting Started process with all software and hardware. Full Open Source software allows the user to create unique projects for specific applications. Detailed user manual and data sheet describes the board. Please visit the UnoLogic product page under the earthpeopletechnology website to access all schematics, user manual, data sheets and project files.

The EPT USB-CPLD development system provides a flexible learning platform by combining a powerful Complex Programmable Logic Device with USB to Serial Interface.

It is designed to provide an innovative method of developing and debugging programmable logic code.

It provides a UART Serial data transfer mechanism between any microcontroller (or any digital device) and a host PC.

The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus Prime Lite software.

The user will develop the code in the Quartus environment on a Windows Personal Computer.

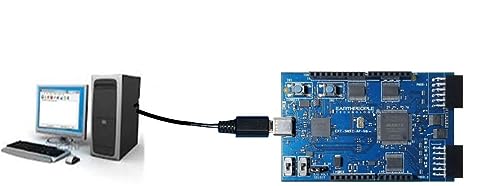

The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB-C cable.

The programmer hardware is built in to the UnoProLogic.

The ActiveHost API provides a highly configurable communications interface between CPLD and host PC.

It connects transparently to the Active Transfer Library running inthe CPLD code.

Altera 5M570 CPLD

24 Inputs/Outputs compatible with 5 Votls

Four Green LEDs

Two push button switches

4 Channel ADC with 300KS/s

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b00eyxm56g
Model:: EPT-5M57-AP-U2
Country:: US
ASIN:: B00EYXM56G
UPC:: 720825491929
