Add to favorites
HCDC RPi GPIO Status LED & Terminal Block Breakout Board HAT for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B — Open-Box, 15% Off
Brand: HCDC
Condition: Used - Mint
$1605
$1899
-15% Save $294
Updated: 50 days ago
Description
The item has been soldered and assembled. Support for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B

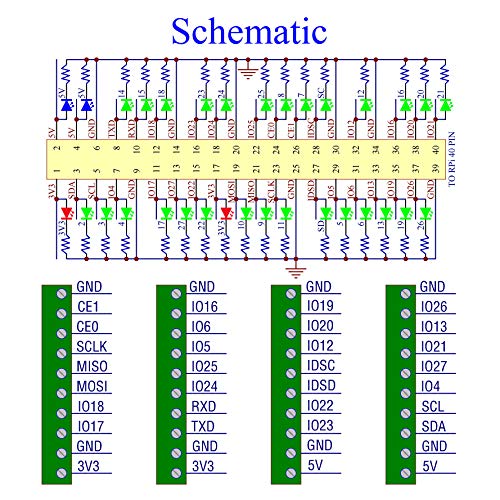

GPIO status LED and power 5V / 3.3V indication. GPIO output or input level high LED on, output or input level low LED off. 5V blue, 3.3V red, GPIOs green. The position of the LED is in a one-to-one correspondence with the position of the Raspberry Pi 2x20pin connector, and the logic level of the GPIO can be observed very quickly and intuitively. The driving current of each LED is only 0.1mA, so you don't have to worry about it affecting the read and write status of GPIO.
Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. 2 x 20 pins expansion pin header, height 8mm/0.32".
Packing list: 1x terminal block breakout module, 4x M2.5x16mm nylon standoffs, 4x M2.5x6mm nylon standoffs, 4x M2.5 nylon nuts(NOTE: the item not include Raspberry Pi Board).
1, The item has been soldered and assembled. Support for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B 2, GPIO status LED and power 5V / 3.3V indication. GPIO output or input level high LED on, output or input level low LED off. 5V blue, 3.3V red, GPIOs green. The position of the LED is in a one-to-one correspondence with the position of the Raspberry Pi 2x20pin connector, and the logic level of the GPIO can be observed very quickly and intuitively. The driving current of each LED is only 0.1mA, so you don't have to worry about it affecting the read and write status of GPIO. 3, Terminal block pitch 3.5mm/0.138 inch, wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. 2 x 20 pins expansion pin header, height 8mm/0.32 inch 4, Packing list: 1x terminal block breakout module, 4x M2.5x16mm nylon standoffs, 4x M2.5x6mm nylon standoffs, 4x M2.5 nylon nuts (NOTE: the item not include Raspberry Pi Board).
Sold by
Amazon Warehouse
Official Amazon outlet for open-box & returned items
- Backed by Amazon's A-to-Z Guarantee
- 30-day return policy
- Ships from Amazon fulfillment centers
- Price verified on Amazon
Product Details
- SKU:
- awhd-us-b08rdydg6x
- Model:
- HD040
- Country:
- US
- ASIN:
- B08RDYDG6X
