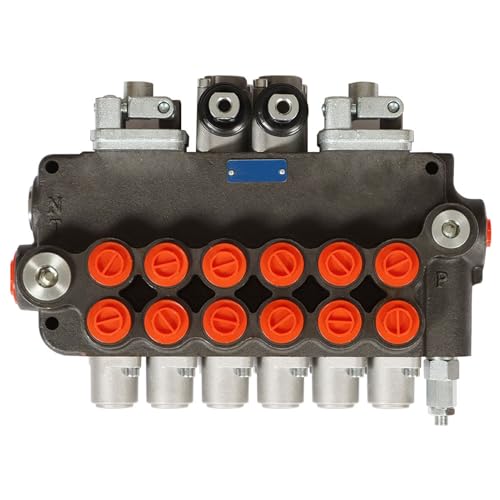

findmall 6 Spool 21GPM 3625PSI Hydraulic Directional Control Valve, SAE Ports Double Acting Valve for Small Tractors, Tractors, Loaders, Log Splitter

Double Acting - Hydraulic control valve for operating double acting cylinders. Durable Quality - This hydraulic directional control valve comes with 6 spool, with cast iron construction for long-time use. Easy to Use - Integrated manufacturing of valve body, compact size, convenient installation, and easy to use High-Efficiency - The relief valve range is up to 3625 PSI and the maximum flow is up to 21 GPM. Wide Application - Fit for small tractors, tractors loaders, log splitters, and etc.

Features:

Max Operating Pressure: P = 3625PSI, T = 725PSI, A & B = 4350PSI

Flow Rating: 21GPM (80 l/min)

A & B Work Ports: SAE 10 O-Ring (7/8"-14) Thread

Inlet Port: SAE 10 O-Ring (7/8"-14) Thread

Outlet Port: SAE 12 O-Ring (1-1/16") Thread



Advantages:

Used for open center systems (pump to tank flow) - closed center option available

Hard chrome-plated spools assure a long life

High-tensile strength cast iron monoblock construction

SAE O-Ring ports ensure solid seal and prevent blockages

Capable of closed center or power beyond (conversion plug required)

Vertical or horizontal handle mount

Used as motor or single-acting spool possible (SAE 10 port plug required)
