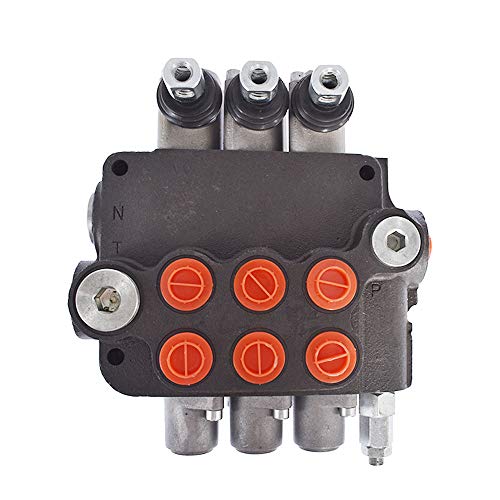

findmall 3 Spool 21GPM 3625PSI Hydraulic Directional Control Valve, SAE Ports Double Acting Valve for Small Tractors, Tractors, Loaders, Log Splitter

Double Acting - Hydraulic control valve for operating double acting cylinders. Durable Quality - This hydraulic directional control valve comes with 3 spool, with cast iron construction for long-time use. Spring Return - All spools are standard double acting with spring return to the neutral place which is ideal for double-acting cylinders. High-Efficiency - The relief valve range is up to 3625PSI and the maximum flow is up to 21GPM. Wide Application - Fit for small tractors, tractors loaders, log splitters, and etc.

Features:

Max Operating Pressure: P = 3625PSI, T = 725PSI, A & B = 4350PSI

Flow Rating: 21GPM (80 l/min)

B Work Ports: 10 SAE O-Ring (7/8"-14) Thread

Inlet Port: 10 SAE O-Ring (7/8"-14) Thread

Outlet Port: 12 SAE O-Ring (1-1/16"-12) Thread

Advantages:

3 Spool valve with compact design allows for installations in tight areas

All spools are standard double acting with spring return to neutral place which are ideal for double acting cylinders

Used for open center systems (Pump to Tank Flow) - closed center option available

Accuracy ground and hard chrome-plated spools assure a long life

High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages

Capable of closed center or power beyond (conversion plug required)   Vertical or horizontal handle mount

Adjustable Relief Valve Range: 1500 to 3625PSI used as motor or single-acting spool possible (10 SAE port plug required)
