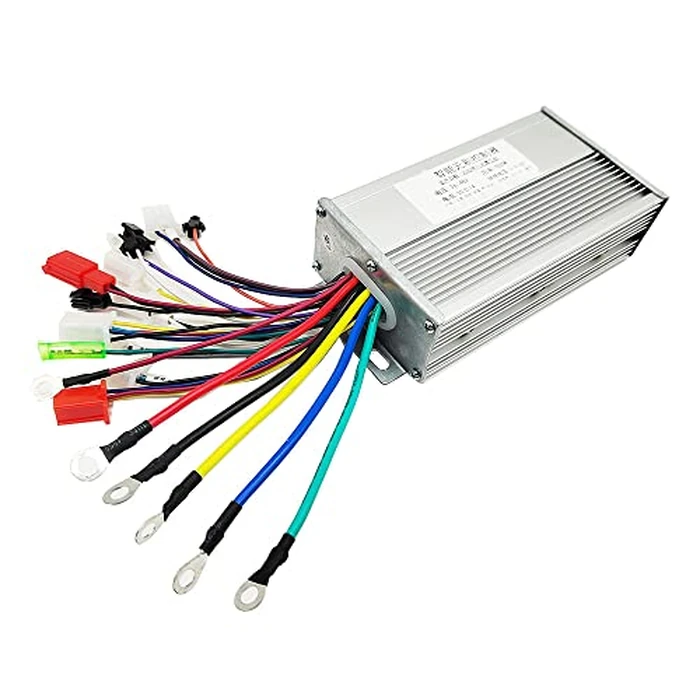

yuandai Electric Bicycle Bike Scooter e-Bike Brushless DC Motor Controller 48V 60V 64V 500W
Brand: yuandai
Condition: Used - Like New
$2083
$2708
-24% Save $625
Updated: 6 hours 56 mins ago
Description
• Application--It suitable for electric bicycles, scooter, etc.
• Premium Material--It made of aluminium alloy, this brushless controller is sturdy and durable.
• Sensitive Control--This item is a brushless motor controller, it can provide steady speed and sensitive control of braking and direction changes.
• High Performance--The wires and interfaces are durable, and ensure low malfunction of long time use.
• Easy to Use-- The interfaces have instruction labels on them for your easy installation.
48-60-64V 500W square wave brushless controller
Rated Voltage: 48V-64V
Low Voltage : 42V±0.5V
Rated Power: 500W
Limit Current: 30A
48V-64V 500W controller function:
1.LCD instrument line
2. 3-speed
3.cruise
4.self-learning
5.high brake
6.low brake
7.alarm power
8.alarm signal
9.reverse
10.throttle
11.hall（5wires ）
12.key lock（ battery +）
13.battery +
14.battery -
15.motor
16.pointer meter line
how to connect controller？
1.connect the motor line (color to color connection）
2. connect the battery line(red:battery+ , black:battery-)
3. connect the controller throttle line, key lock（if throttle not have key lock, connect controller key lock to battery+，key lock must connect ）
4. connect the hall line(if motor without hall line, don’t need connect，but motor will have noise)
5.off power, let two self-learning lines connect together,open power, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. let two self-learning lines connect together .if wheel forward ,Separate the self-learning line.)
This operation involves comparing the phase of the control and motor, while also comparing the battery voltage with the controller.
note：when use throttle work，two self-learning lines must separate.
6.other functions can be connected as needed.
Rated Voltage: 48V-64V
Low Voltage : 42V±0.5V
Rated Power: 500W
Limit Current: 30A
48V-64V 500W controller function:
1.LCD instrument line
2. 3-speed
3.cruise
4.self-learning
5.high brake
6.low brake
7.alarm power
8.alarm signal
9.reverse
10.throttle
11.hall（5wires ）
12.key lock（ battery +）
13.battery +
14.battery -
15.motor
16.pointer meter line
how to connect controller？
1.connect the motor line (color to color connection）
2. connect the battery line(red:battery+ , black:battery-)
3. connect the controller throttle line, key lock（if throttle not have key lock, connect controller key lock to battery+，key lock must connect ）
4. connect the hall line(if motor without hall line, don’t need connect，but motor will have noise)
5.off power, let two self-learning lines connect together,open power, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. let two self-learning lines connect together .if wheel forward ,Separate the self-learning line.)
This operation involves comparing the phase of the control and motor, while also comparing the battery voltage with the controller.
note：when use throttle work，two self-learning lines must separate.
6.other functions can be connected as needed.
Sold by
Amazon Warehouse
Official Amazon outlet for open-box & returned items
- Backed by Amazon's A-to-Z Guarantee
- 30-day return policy
- Ships from Amazon fulfillment centers
- Price verified on Amazon
Product Details
- SKU:
- awhd-us-b09fk6pjmk
- Model:
- 36-48V 500W
- Country:
- US
- ASIN:
- B09FK6PJMK
