YBBOTT 20A 240W DC Converter 24V to 12V Step Down Converter DC Buck Converter Transformer Power Supply Compatible with Vehicle Cart Truck Volt — Open-Box, 49% Off

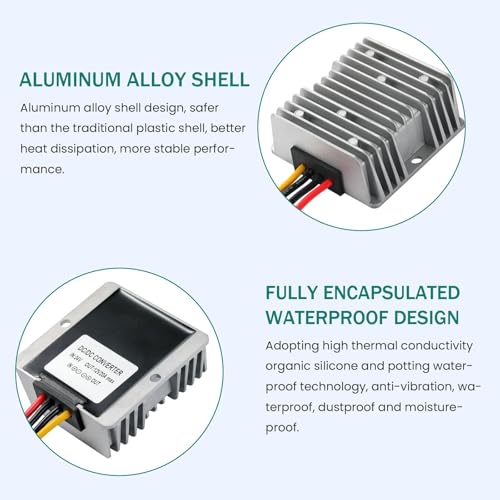

POWER CONVERTER: DC 20A 24V to 12V step down converter with stable performance and conversion efficiency above 95% Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity VOLTAGE RANGE: Input voltage: 24V; Output voltage: DC 12V; Output current: 20A; Maximum output power: 240W; Small Size and easy to place in any applications; The converter is shockproof, dustproof, stable and reliable quality INTELLIGENT PROTECTION: Supports output short-circuit protection, overcurrent protection, and overtemperature protection; Operating temperature -40℃ to +85℃, in order to extend the service life of the power supply, please use rated output current ≤50% INSTALLATION: Easy to install, pull of the key 90° MAX, insert the wire, press the key tightly; The converter has a red and black wire, the red is connected to the positive electrode, and the black is connected to the negative electrode WIDE APPLICATION: A wide range of use, the excellent voltage reducer can be used for monitoring systems, golf carts, solar panels, etc.

Specification Parameters

Input voltage: 24V

Input range: 18V to 35V

Output voltage setting: 12V

Output current: 20A

Output power: 240W

Working environment temperature: -25 to 65°

Storage ambient temperature: -40 to 85° C

Heat dissipation mode: Natural heat dissipation from the shell

Connection Mode

Input: Red+ Black-

Output: Yellow+ Black-

Input transient high voltage protection, output overcurrent protection, chip overtemperature protection

Dimensions: Length 74 mm or 2.91 in x Width 74 mm or 2.91 in x Height 32 mm or 1.25 in

Weight: 260 grams

 Matters of Use

1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply

2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply

3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time

4. Do not use near heat sources, such as fire or heater

5. Do not connect the input cable to the household power supply 220V

6. Do not put the product in the fire or heat it

7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product

8. Non professional personnel are prohibited from disassembling and repairing themselves

Note: This product is stored in a dry and cool place, the temperature range is -40℃ to 80℃, avoid contact with corrosive substances, away from fire and heat sources
