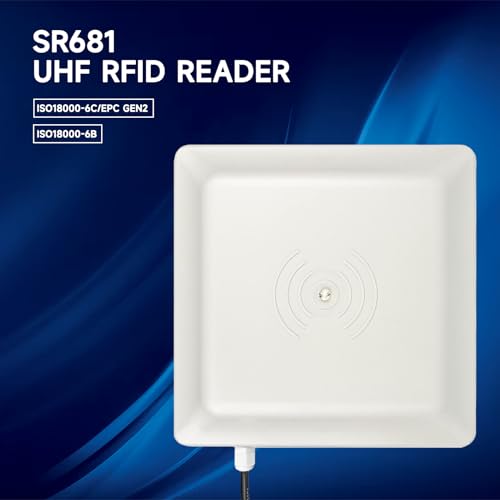

YANZEO SR681 UHF RFID Reader 6m Long Range IP67 UHF Integrated Reader by Yanzeo - Used condition

YANZEO SR681 UHF RFID Reader 6m Long Range IP67 UHF Integrated Reader — Open-Box, 24% Off

Name: YANZEO SR681 UHF RFID Reader 6m Long Range IP67 UHF Integrated Reader
Brand: Yanzeo
SKU: awhd-us-b0ctf7jlm4
Price: 151.95 USD
Availability: InStock

Brand: Yanzeo

Condition: Used

$151⁹⁵

$199⁰⁰

-24% Save $47⁰⁵

Updated: 2 days ago

Buy at Amazon.com

Description

High - Performance UHF Integrated Reader - The YANZEO SR681 is a high - performance UHF integrated reader designed for long - range operation. It can read ISO18000 - 6C and ISO18000 - 6B protocol ID tags. With a read range of over 6m and the ability to read more than 50PCS in a group, it offers excellent reading performance, making it suitable for a wide range of applications. Adjustable Output Power and Communication Ports - The output power of the SR681 is adjustable from 0 - 30dBm, allowing users to optimize the signal strength according to different needs. It is equipped with multiple communication ports, including USB, RS485, Wiegand26, and Wiegand34. Multiple Operating Frequencies and Modes - It supports multiple operating frequencies, including the international frequency range of 920 - 925MHz, 902 - 928MHz in the USA, 865 - 868MHz in EUR, and can be customized for other tags. It has a frequency - hopping mode that is software - programmable with fixed - frequency band and FHSS options. Also, it offers multiple operating modes such as Master - Slave Mode (Online Mode), Time Scheduled Modes, and Trigger Mode, providing great flexibility. Suitable for Diverse Application Scenarios - This RFID reader is widely applicable in various fields such as parking lot management, automotive and transportation, personnel management, logistic management, product line management, and library book management. Its versatility makes it an ideal choice for different industries' RFID - related requirements. Professional technical support team, visit Yanzeo, we will provide you with more services. Downloading SDK link:www.yanzeo.com/download. Professional technical support team, visit Yanzeo, we will provide you with more services.

UHF RFID Card reader 6m long range, 8dbi Antenna USB RS485 Wiegand26/34 Read 8M Integrative UHF RFID Reader
The UHF RFID Middle Range Reader is a high performance UHF integrated reader .
Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Interface
Red:+9V
Black:GND
Green:USB TXD
White:USB RXD
Brown:GND
Yellow:Wiegand DATA0
Grey:Trigger input（TTL level
） Blue:Wiegand DATA1
Purple:RS485 R+
Orange:RS485 R-
* Effective distance depends on antenna, tag and environment.
Pictures
Interfaces(USB RS485 Wiegand26/34 )
Power Supply
: SYMBOL :VCC
MIN :8
TYP: 9
MAX:12
UNIT:V
Current Dissipation:
SYMBOL:IC
TYP: 350
MAX:650
UNIT:mA
Frequency :
SYMBOL :FREQ
MIN :860
TYP: 865~868 ,902~928
MAX:960
UNIT:m-HZ
Effective Distance:
SYMBOL :DIS
MIN :300
TYP: 500
MAX:600
UNIT:CM
9662 read labels, we tested the longest distance is 6 meters, label size and dimensions of the different antennas will affect the reading distance.
Welcome more experienced counterparts to exchange UHFRFID!

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b0ctf7jlm4
Model:: SR681
Country:: US
ASIN:: B0CTF7JLM4
