YABOANG DC/DC Buck Converter from 20-90V to 12V, 20A 240W MAX Power Transformer Waterproof Step Down Module for Automotive, LED Lights, Trucks
Brand: YABOANG
Condition: Used - Like New
$1751
$2450
-29% Save $699
Updated: 10 hours 56 mins ago
Description

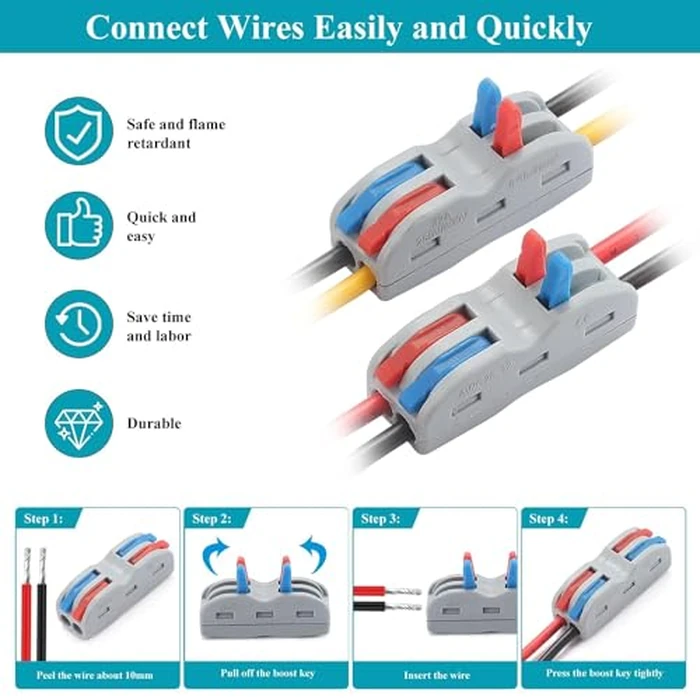

• 20-90V to 12V DC Voltage Transformer：Input range:20V to 90V; output voltage : 12V(fixed output) output current : 20A output power : 240W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.

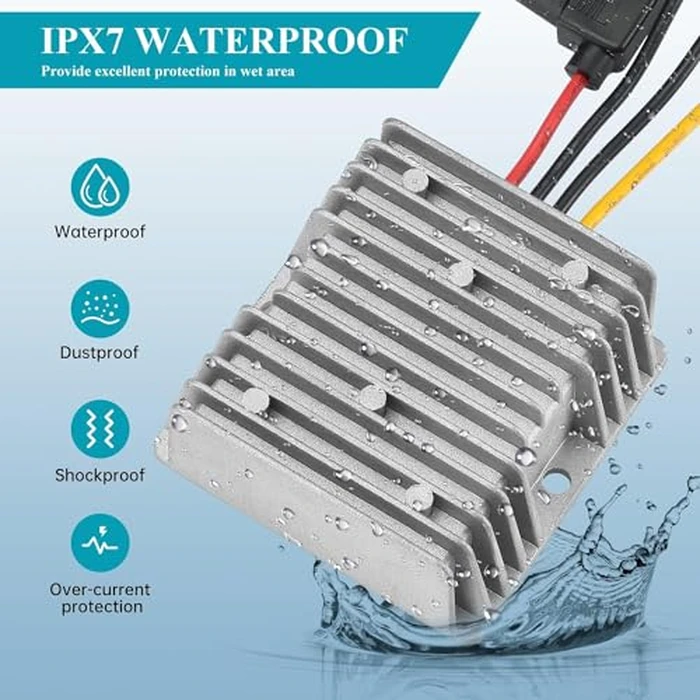

• Heat Dissipation Performance：The 20-90V to 12V voltage regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.
• Intelligent Protection：Assembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the20-90V to 12V power transfomer voltage.
• Widely Application：The 20-90V to 12V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.

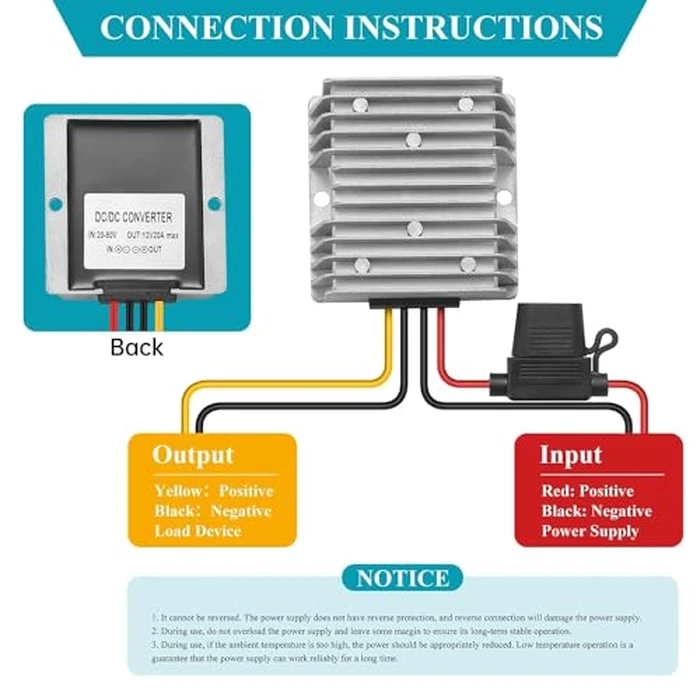

• Please Note：The load connected to the transformer converter output should not exceed the specified maximum load. (Any greater load will damage the buck converter).The 20-90V to 12V DC power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.
A. Test the environmental conditions
B. Unless otherwise specified, the tests in this specification shall be conducted
under the standard atmospheric conditions tested
C. temperature:15℃~35℃.
D. Relative humidity: 45%~75%
E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 KΩ / V.
F. The instrument accuracy of measuring current shall not be less than the 0.5 level
G. The accuracy of the instrument used for measuring the temperature shall not be less than ± 1℃

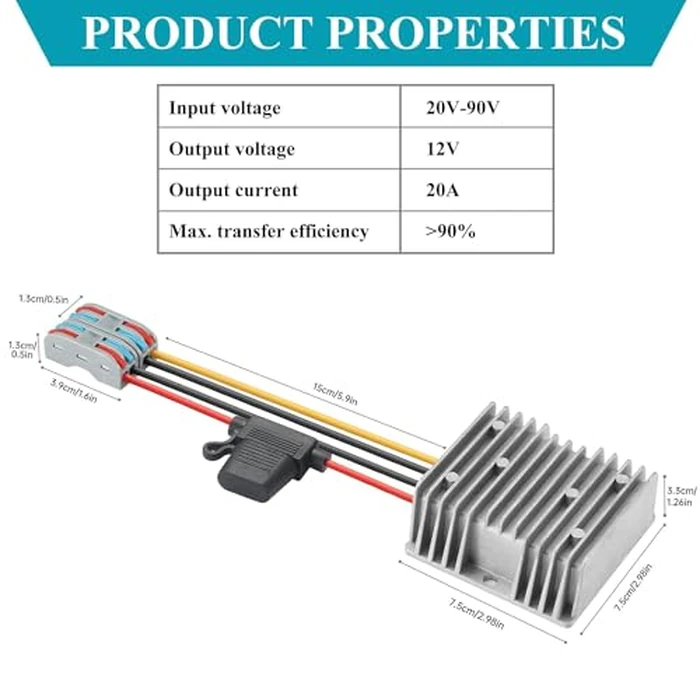

Input range:20-90V
Rated input voltage:24/36/48/60/72/84V
transfer efficiency:95%
incoming line:15-16CM(R+ B-)
output voltage:12V
output:20A MAX
maximumoutput:240W MAX
No-load adjustment rate:2%
load regulation:3%
quiescent dissipation:≤30MA
Do not use it near a heat source (such as a fire or a heater)
Do not connect the input line to 220V electricity
Do not put the product into the fire or heat it
Do not short-circuit the positive or negative poles of the product with wires or other metal objects
Non-professional personnel are prohibited to disassemble and repair by themselves
B. Unless otherwise specified, the tests in this specification shall be conducted
under the standard atmospheric conditions tested
C. temperature:15℃~35℃.
D. Relative humidity: 45%~75%
E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 KΩ / V.
F. The instrument accuracy of measuring current shall not be less than the 0.5 level
G. The accuracy of the instrument used for measuring the temperature shall not be less than ± 1℃
Input range:20-90V
Rated input voltage:24/36/48/60/72/84V
transfer efficiency:95%
incoming line:15-16CM(R+ B-)
output voltage:12V
output:20A MAX
maximumoutput:240W MAX
No-load adjustment rate:2%
load regulation:3%
quiescent dissipation:≤30MA
Do not use it near a heat source (such as a fire or a heater)
Do not connect the input line to 220V electricity
Do not put the product into the fire or heat it
Do not short-circuit the positive or negative poles of the product with wires or other metal objects
Non-professional personnel are prohibited to disassemble and repair by themselves
