Y&H 3600W Hybrid Solar Inverter DC 24V to AC 110/120V Pure Sine Wave, w/ 120A MPPT Controller, Dual AC Output, Max 4200W PV Input, Lead-Acid/Lithium/Battery-Free Use, for Home Backup, RV, Off-Grid

Y&H 3600W On/Off-Grid Solar Hybrid Inverter: This upgraded 3600W solar inverter supports the conversion of DC 24V to AC 110V/120V and outputs pure sine waves. It has a built-in circuit breaker and is a new integrated solar hybrid charging inverter that encompasses solar energy storage, battery charging, and AC sine wave output, providing an uninterrupted power supply. Technical Parameters: 120A MPPT solar charging inverter, MAX. PV array power: 4200W, Peak power: 7200W, Max DC Voltage: 500VDC; Max AC Input Current:40A; Output Frequency: 50Hz/60Hz; Starting Voltage > 90V, Maximum Charging Current:120A. LCD Display and Real-time Monitoring: This All-in-One solar inverter features an LCD display and 3 LED indicator lights for dynamic and convenient monitoring of system data and operation status. Intelligent variable speed fan dissipates heat effectively, extending the system's lifespan. Charging and Output Modes: The solar inverter offers 4 charging modes: only solar, mains supply priority, solar priority, and a combination of mains supply and solar charging. 2 output modes: power bypass and inverter output; continuous power supply caters to diverse application needs. Compatible with 24V Batteries and No-Battery Operation: Compatible with a variety of 24V batteries, including AGM, gel, lead acid, lithium ions, and lithium iron phosphate batteries. It offers a no-battery operation mode and features built-in lithium activation and comprehensive battery protection functions, including short circuit protection and over/under voltage protection, effectively extending battery life. Dual Load Output Power: 4.2KW model has a setting range of 20.0V to 23.0V, incremental each click by 0.1V. When the battery voltage is lower than the setting range, the main output port will stop working. Only the secondary output port can work. For areas with frequent power outages and loads that cannot be powered off, the battery voltage can be set to 23V. If the battery voltage is higher than 23V, the main output port will continue to operate. Wide Applications: This solar hybrid inverter can power various household or office appliances, including lights, fans, fridges, and air-conditioning units. Compatible with municipal electricity or generator supply, capable of accommodating a range of household and office loads. Note: This inverter does not support parallel operations. This is a multi-function inverter/charger, combining functions of inverter,
solar charger and battery charger tooffer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurableand easy-accessible button operation such as battery charging current,
Ac/solar charger priority, andacceptable input voltage based on different applications.
【Y&H can provide you with a battery package.】
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise,
it will easily lead to insufficient battery capacity or excessive waste of power generation. For details,
please refer to the manual recommendation or consult online customer service.

Describe:
This is a multi-function inverter/charger, combining functions of inverter,
solar charger and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority,
and acceptable input voltage based on different applications.

3600W On Grid/Off-Grid Solar Inverter Features：
*Pure sine wave solar inverter(on/off Grid)
*Cloud monitor&GPRS available for IOS and Android
*Inverter running without battery
*One-key restoration to factory settings
*Built-in lithium battery automatic activation
*Built-in MPPT 120A Solar Charger
*Solar chargeHigh PV input voltage range(90~450VDC)
*Built-in anti-dusk kit for harsh enviroment
*Smart battery charge design to optimize battery life

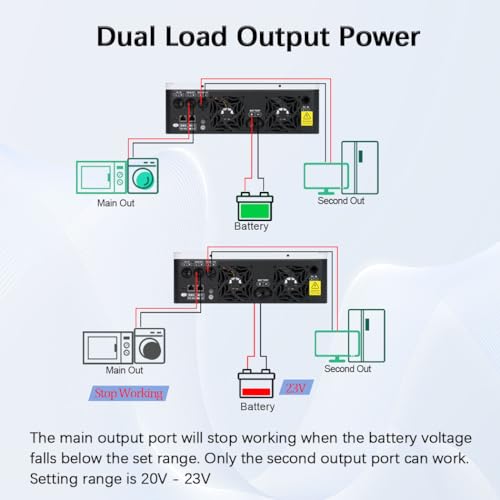

*110V/120V AC Dual output
