XRDS -RF 50ft N Male to N Female Cable, 50 ohm KMR240 Low Loss N Connector Coax Extension Cable Jumper for WiFi/Ham Radio Antenna, Signal Booster, Router, Amplifier — Open-Box, 22% Off

😃【Product Features】— Connector: N Male to N Female. Cable Type: KMR240 Cable. Impedance: 50 Ohm. Length: 50ft. 😃【Ultra Low Loss】 — N male to N female coaxial cable allows transfer of signals over large distances, supports higher frequency use and minimum signal loss. Signal loss per 3ft on 3000MHz is only 0.42 dB. 😃【Premium Material】 — The inner conductor of this 6ft KMR240 N Type Coax Cable is solid copper, so it is efficient and causes low signal loss. The Jacket is made of the flexible and proof-water pvc that could be used so long in the harsh environments in the outdoor. 😃【Prevent Coming Off】— This N type coaxial cable uses the black heat shrink tube and lined adhesive by heat shrinking to connect the adapter and the cable. All the connections are solid and professionally attached that could prevent the connector coming off from the cable easily. 😃【Suitable for】— This 50 ohm n male to female Coax Cable suitable for outdoor antenna or remote antenna connection to indoor amplifier. Used for 3G/ 4G/ 5G/ LTE/ WiFi/ Ham Radio Antenna or Phone Signal Booster, Router, taps, splitters and etc. Description:

XRDS-RF 50 Ohm N male to N female Double shielded coaxial cable made of low loss LMR240 sized pure solid copper coax cable.

Specification:

Nom. 6GHZ VSWR≤ 1.15
Nom. 3GHZ Attenuation≤ 2.3
Nom. 6GHZ Attenuation≤ 3.3
Nom. Characteristic Impedance: 50ohm
Nom. Diameter: 0.24 Inch
Nom. Min. Bend Radius(Install): 2in
Nom. Max.Operating Frequency: 6000MHz
Nom. Operating Temp: -40 to +80℃
Nom. Maximum tensile strength: 21.3Ib

Material:

KMR240 Cable
Jacket: PVC
Outer conductor: Aluminum foil and tinned copper braid
Dielectric: Foamed PE
Inner conductor: Solid copper
N Type Male/Female Connector
Outer Shell: Copper nickel plated
Inner Needle: Brass gold plated

Features:

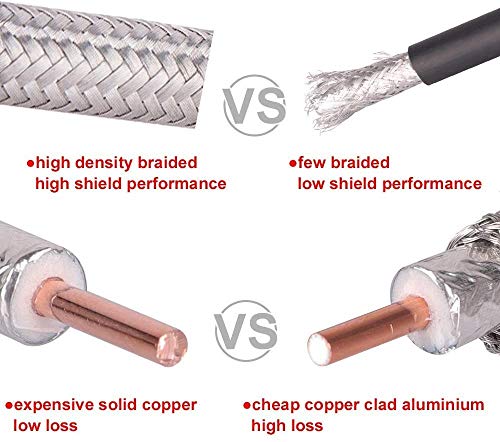

1. This KMR240 N-Type male to female adapter cable, holding the shield at a uniform distance from the central conductor, the space between the two is filled with a dielectric designed to maintain the proper spacing between conductor and shielding to assure maximum signal transmission and lowest loss.

2. This KMR240 ham radio antenna shielded cable can be bent and moderately twisted without negative effects, and it can be strapped to conductive supports without inducing signal interference.

3. It is very easy to install, it can high quality and quick combinations by simply screwing two connectors together, with no soldering required.

Package Include:

1 x 50ft N Male to N Female Low Loss Coaxial Cable (Not for TV)

Professionally Made:
XRDS -RF is a professional manufacturer in producing coax cable. This N male to N female jumper is swept with network analyzers to assure the vswr of the cable less than 1.15.
