Wired PIR Motion Sensor, 12V DC, with NC/NO Dry Contact Output, Pet Immune — Open-Box, 16% Off

MOTION SENSOR FOR HOME SECURITY — This wired motion sensor uses dual passive infrared (PIR) detection to detect human movement indoors, with a 32 ft (10 m) detection range and 110° detection angle. Designed for wired home alarm and security applications. PIR MOTION SENSOR WITH DRY CONTACT — Provides a voltage-free NC/NO output for wired alarm panels. The output does not supply power; it simply opens or closes the contact according to the selected NC/NO configuration, the factory setting is N.C. (normally closed). POWER & CONNECTIONS — Operates on DC 9–16V power, with 12V DC recommended. The power connection and NC/NO contact connection are separate, allowing the sensor to be integrated into suitable hardwired installations. J1 adjusts the pulse count, J2 selects the NC/NO contact mode, and J3 controls the LED indication. Product size: 2.1 × 4.1 × 1.4 in; weight: 0.13 lb. PET IMMUNE MOTION SENSOR — Designed to reduce false detections caused by pets weighing up to 55 lbs (25 kg). Within the 32 ft (10 m) detection area, pets within the specified weight limit are designed to be ignored while human movement can still be detected. PIR MOTION DETECTOR WITH ADJUSTABLE SETTINGS — Automatic temperature compensation, high-frequency interference resistance, selectable pulse counting, and LED indication help maintain stable detection in different indoor environments. J1 allows first- or second-level pulse counting; the factory setting is first level. J3 can be used to turn the LED indication on or off; the factory setting is ON. WALL-MOUNT INSTALLATION — Designed for wall mounting at approximately 7.2 ft (2.2 m), with an operating temperature range of -10°C to +50°C (14°F to 122°F). Avoid placing the sensor near air conditioners, fans, windows, ovens, or other sources of rapid temperature changes. Wired PIR Motion Sensor

This wired PIR motion sensor is designed for indoor motion detection, security and occupancy applications. It uses a dual pyroelectric infrared sensing element to detect changes in infrared energy caused by human movement within the detection area.

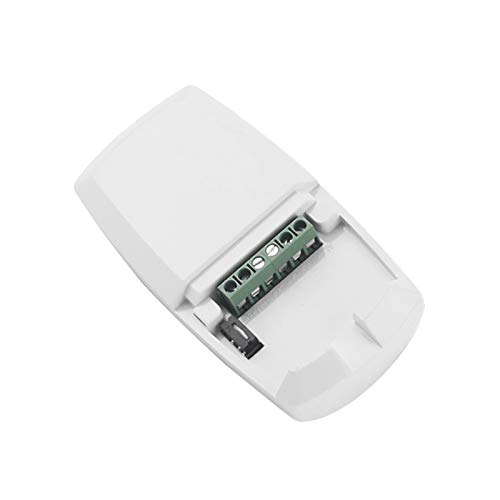

The sensor operates on DC 9–16V power, with 12V DC recommended, and provides an NC/NO dry contact output for connection to compatible hardwired equipment. The factory setting is NC (normally closed), and the output mode can be adjusted using the J2 jumper.

Detection Performance
Detection Distance: 32 ft (10 m)
Detection Angle: 110°
Sensor Type: Dual pyroelectric infrared sensor
Pet Immunity: Up to 55 lbs (25 kg)
Pulse Count: First or second level selectable
Installation Height: Approx. 7.2 ft (2.2 m)
Mounting: Wall mounted

Adjustable Functions
J1: Selects first- or second-level pulse counting
J2: Selects NC or NO contact mode
J3: Turns the LED indication on or off

Technical Specifications
Working Voltage: DC 9–16V
Recommended Voltage: DC 12V
Current Consumption: ≤25mA at DC 12V
Working Temperature: -10°C to +50°C (14°F to +122°F)
Alarm Contact: NC/NO selectable, DC 28V, 80mA max.
Tamper Contact: NC, voltage-free, DC 28V, 100mA max.

Installation
Fix the detector bracket to the wall with screws first, then hang the detector. Mount the detector at approximately 2.2 m (7.2 ft) above the floor, and the detector should be at an angle of 6-12 degrees to the wall.
Avoid placing the sensor directly toward air conditioners, electric fans, refrigerators, ovens, windows or other objects that may cause rapid temperature changes. Keep the area in front of the lens unobstructed for reliable detection.
