WiFi LoRa 32 V4 Development Board with 0.96" OLED ESP32S3 WiFi & BLE Module SX1262 LoRa Node 28dBm 915MHz for Arduino Meshtastic LoRaWAN IoT
Brand: DIYmall
Condition: Used
$2849
$2999
-5% Save $150
Updated: 4 days ago
Description
The all-new V4 version of the classic development board WiFi LoRa 32 supports WiFi, BLE, and LoRa communication. It supports development methods for Arduino, Micro-python, Platform-io, and Espressif-IDE
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system. High-power version with LoRa transmission power increased to 28±1dBm

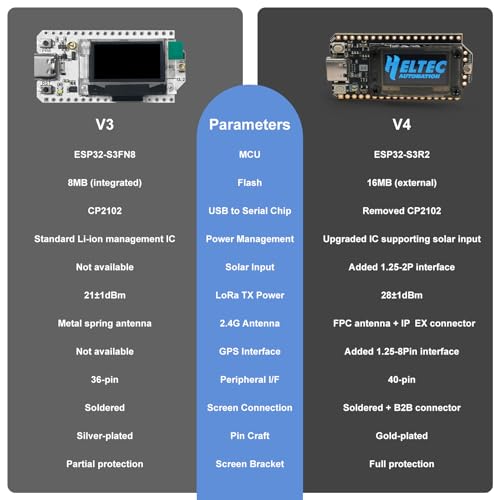

Form factor and pin compatibility with Wi-Fi LoRa 32 V3
With optimized lithium battery management. Added SH1.25-8Pin GNSS interface
It’s the best choice for smart cities, smart farms, smart home, and IoT makers
The classic WiFi LoRa 32 development board has been upgraded to the all-new V4 version. While retaining the advantages of previous editions, it features comprehensive improvements in craftsmanship and enhanced performance.
Main Features:
Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
LoRa Transmit Power: High-power version 28 dBm
PC casing protects the screen and integrates FPC 2.4G antenna.
Form factor and pin compatibility with WiFi LoRa 32 V3.
PC casing protects the screen and integrates FPC 2.4G antenna.
Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
Optimized lithium battery management.
Low power consumption is less than 20μA.
Specifications:
MCU: ESP32-S3R2 (Xtensa32-bit lx7 dual core processor)
LoRa Chip: SX1262
Frequency: 863-928MHz
Max. TX Power: High-power version: 28 ±1 dBm
Max. Receiving sensitivity: -137dBm@SF12 BW=125KHz
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
Hardware Resource:
7*ADC1 + 2*ADC2
7*Touch
3*UART
2*I2C
2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB Flash
Interface:
Type-C USB
1.25*2 Pin lithium battery interface
1.25*2 Pin Solar interface
1.25*8 Pin interface
LoRa ANT(I-PX1.0)
2.4G ANT(I-PX1.0)
Battery applicable: 3.3-4.4V lithium battery
Operating Temperature: -20 ~ 70 ℃
Dimensions: 51.7 * 25.4* 10.7mm
Packing list:
WiFi LoRa 32 (V4) x 1
LoRa Antenna x 1
5DBI LoRa Antenna x 1
1.25×2 Connector (for battery&solar) x 2
2.54*18 Header Pin x 2
2.54*2 Header Pin x 2
Main Features:
Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
LoRa Transmit Power: High-power version 28 dBm
PC casing protects the screen and integrates FPC 2.4G antenna.
Form factor and pin compatibility with WiFi LoRa 32 V3.
PC casing protects the screen and integrates FPC 2.4G antenna.
Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
Optimized lithium battery management.
Low power consumption is less than 20μA.
Specifications:
MCU: ESP32-S3R2 (Xtensa32-bit lx7 dual core processor)
LoRa Chip: SX1262
Frequency: 863-928MHz
Max. TX Power: High-power version: 28 ±1 dBm
Max. Receiving sensitivity: -137dBm@SF12 BW=125KHz
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
Hardware Resource:
7*ADC1 + 2*ADC2
7*Touch
3*UART
2*I2C
2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB Flash
Interface:
Type-C USB
1.25*2 Pin lithium battery interface
1.25*2 Pin Solar interface
1.25*8 Pin interface
LoRa ANT(I-PX1.0)
2.4G ANT(I-PX1.0)
Battery applicable: 3.3-4.4V lithium battery
Operating Temperature: -20 ~ 70 ℃
Dimensions: 51.7 * 25.4* 10.7mm
Packing list:
WiFi LoRa 32 (V4) x 1
LoRa Antenna x 1
5DBI LoRa Antenna x 1
1.25×2 Connector (for battery&solar) x 2
2.54*18 Header Pin x 2
2.54*2 Header Pin x 2
