WAVLINK AX3000 Outdoor WiFi 6 Extender Long Range, WiFi 6 Outdoor Wireless Access Point, Support Active PoE, 4x8dBi Antennas,Outdoor WiFi Solution,IP67,Up to 128 Devices for Farm,Yard,RV,Campsite,Park

【About After Sales】Please feel free to contact us if you have any question.Phone support: +18889730883 ( UTC-5 ) Mon -Fri 9AM -6PM. email support: Contact@wavlink.com. We will provide solutions within 8 h, life-long technical support. 【Enjoy True AX3000 WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. Support work with starlink/ router/ moden/ wifi extender. 【Long Range WiFi Coverage】The upgraded 4x 8dBi omni-directional detachable fiberglass antennas and two built-in high power amplifiers provide up to 200-300m (radius) WiFi coverage and up to 128 connections. Equipped with gigabit ethernet port that supports 1000/100/10Mbps network. 【Indoor/Outdoor Use】Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. Environment : Operating Temperature: -20–50 ℃ (-4–122 ℉), Storage Temperature: -30–70 ℃ (-22–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 10–90% RH non-condensing. 【Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft. 【Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network Note: Mesh mode is only available for wavlink series products.name and password. 【Advanced Wireless Tech】Supports the latest Mesh WiFi(Note: Mesh mode is only available for wavlink series products.), Seamless Roaming, Band Steering, MU-MIMO and Beamforming technologies. 【Wireless Security】WPA2-PSK, WPA2/WPA3-MIX

WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & Anywhere

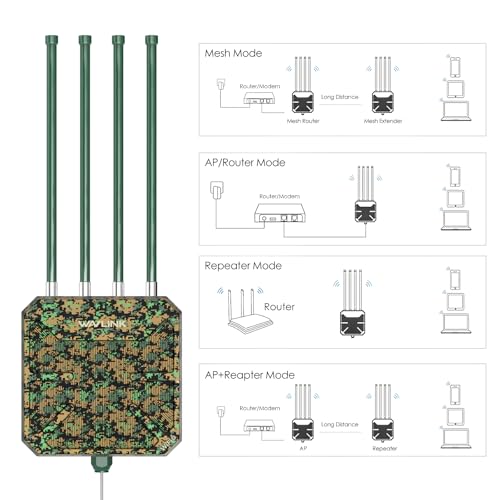

WN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 2976Mbps (2.4GHz 574Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

How to install antennas and Ethernet cable?

①Pass the RJ45 cable through the waterproof connector cover.

②Screw the waterproof seal into the waterproof connector bracket.

③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.

④Put the waterproof sealing ring on the waterproof connector bracket.

⑤Connect the RJ45 cable to WAN/LAN port.

⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.

Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.

How to install the product on a column?

①Stick two silicone pads on the bracket and post respectively.

②Thread the cable ties through the fixing point of the bracket.

③Fix the product to the post with cable ties.
