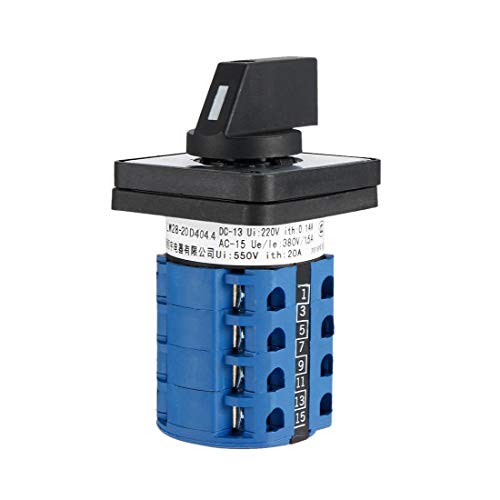

VictorsHome Changeover Switch LW28-20 3 Positions 16 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A by VictorsHome - Used condition

VictorsHome Changeover Switch LW28-20 3 Positions 16 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A — Open-Box, 15% Off

Name: VictorsHome Changeover Switch LW28-20 3 Positions 16 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Brand: VictorsHome
SKU: awhd-us-b07mz5ssfl
Price: 12.77 USD
Availability: InStock

Brand: VictorsHome

Condition: Used - VeryGood

$12⁷⁷

$14⁹⁹

-15% Save $2²²

Updated: 14 days ago

Buy at Amazon.com

Description

☀HIGH QUALITY DESIGN: Flame retardant PC material shape has good insulation and high temperature resistance. With flexible handle conversion, rotary selector is easy to control, square plate and screws for easily mounting. ☀EXCELLENT COPPER PARTS: Premium copper parts with silver alloy point, make it not easy to slide and has strong thermal conductivity. The quality and service life of changeover switch are improved, it is durable for use. ☀TECHNICAL SPECIFICATIONS: Model: LW28-20 D404.4, 3 positions(1-0-2), 4 phases, 16 terminals latching type switch, Ui 550V Ith 20A. Image 3 has shown which terminal will be connected in different position, please read the wiring diagram as a reference. ☀WIDE APPLICATION RANGE: Ideal for electrical wiring in the power switch, speed switch and induction motor, also can make the conversion of the control circuit. ☀WHAT YOU GET: 1pcs x Changeover Switch, 4pcs x Screws. Technical parameters as images show. If you have any question, please feel free to contact us !

Description

1. Suitable for the thickness between 1mm to 5mm of the mounting board.

2. Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.

3. Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.

Image3 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.

Position 1 : 1-2 , 5-6 , 9-10 , 13-14

Position 0 : All terminal disconnected

Position 2 : 3-4 , 7-8 , 11-12 , 15-16

Specifications

Model: LW28-20 D404.4

Positions: 3

Terminals: 16

Ui: 550V Ith: 20A

Action Type: Latching

Positioning angle: 60-0-60 Degree

Rating: DC-13: Ui: 220V, Ith: 0.14A; AC-15: Ue / Ie: 380V / 1.5A

Mounting Hole Distance: 36mm x 36mm / 1.41inch x 1.41inch (L*W)

Total Size: 49mm x 49mm x 91mm / 1.93inch x 1.93inch x 3.58inch (L*W*H)

Package Content

1 x Changeover Switch

4 x Mounting Screws
