Vertical Lift Hinge, Vertical Swing Lift Pneumatic Arm Kitchen Mechanical Hinge Slow Closing, Durable & Silent Fit for Cabinet Width: 19.69-35.43" Matte Black — Open-Box, 40% Off

【Strong support】: This Cabinet door hinge vertical swing lift pneumatic arm kitchen mechanical hinge using Aluminum alloy, durable thick cold-rolled steel, up to 5kg/11lbs, can provide stable and reliable support for your cabinet door. Whether it is a heavy solid wood door or a cabinet door full of items, it can be easily handled to ensure that the door opens and closes smoothly. 【Fitment】:This vertical swing lift up hinge suitable for doors under 11lbs and cabinets with dimensions ranging from 500-900mm/19.69-35.43", >320mm /11.81" height, and >220mm/8.66" depth, they cater to a wide array of cabinet sizes. 【Precise and flexible adjustment】Tilt adjustable screws allow the door to tilt + 4mm, vertical adjustable screws can change the vertical position of the door ±3mm, horizontal adjustable screws can adjust the horizontal position of the door ±3mm. Such fine adjustment function allows you to easily adjust the cabinet door to the perfect position, ensuring the overall beauty and ease of use. 【Wide Range of Uses】: This vertical swing lift up hinge suitable for the cabinet which putted the micro-wave oven, disinfection bowl device and so on.the normal turned panel, when opened it, it is easily to hurt the head, but the automatic parallel- moving gas device won't, it's excellent gas device can made the door parakkel-open silently, also it can smooth and steady break. 【Smooth and quiet experience】: The carefully designed lifting mechanism makes the door smooth and smooth in the lifting process, without any delay. The specially configured silent device makes the cabinet door open and close silently during the busy time of cooking in the kitchen or the quiet time of night in the bedroom, creating a comfortable environment for you. Moreover, the length of the adjustable connecting rod is 19.68 ~ 35.43in, which can meet a variety of scenarios.

vertical swing lift up hinge Specifications:

Door weight: within 5 kg/11bs

Width: 500-900mm/19.69-35.43"

Height: greater than 320mm/11.81"

Depth: greater than 220mm/8.66"

Material:

Aluminum alloy

thick cold-rolled steel

Installation note:

In order to ensure the stability of the hinge frame, the air column has a certain pressure, and the installation requires some skills. The installation tips are as follows

Step 1: Pass the screwdriver through the hole at the end of the air column and the screw hole

Step 2: Push hard to the right with the screwdriver hand, at the same time, push hard down with the other hand, so that the two holes are facing it

Function:

* Upturning support function: It can easily realize the upturning action of the cabinet door, and provide stable support force, so that the cabinet door remains fixed in the open state, convenient for you to take items.

* Lifting adjustment function: the height of the cabinet door can be flexibly adjusted according to your needs, to adapt to different use scenarios and personal habits, so that the operation is more comfortable and convenient.

* Buffer closing function: play a buffer role when the cabinet door is closed, avoid the noise and collision caused by the rapid closing of the cabinet door, protect the cabinet door and the cabinet body, and extend the service life.

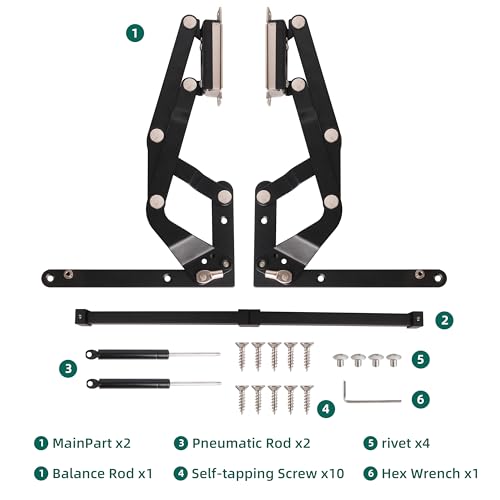

Package Including：

2 * cabinet door lift up hinge

1 * adjustable balance pole 500-900mm long

2 * 250N gas columns

1 * package of screw fittings required for installation

Color:

matte black
