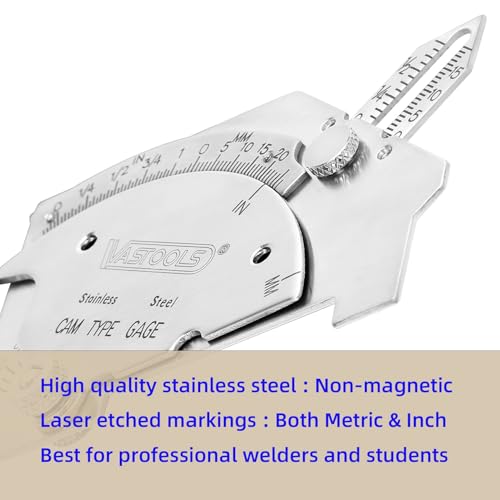

VASTOOLS Cam Weld Gauge,Stainless Steel,Metric & Inch,Linear Measurements up to 2"(50mm),Permanently Etched Markings and Thickness for Professional Welders

·High quality stainless steel blades to resist rust and for longer life

·Blades are deburred for fineand smooth edges

·All sizes and numerals are laser etched into the surface for clarity and easier reading

·Angle of preparation, 0° to 60° and excess weld metal (capping size)

·The bridge welding gauge can be used for measuring angle of preparation,excess weld metal,depth of undercut,depth of ptiiing,fillet weld throat size,fillet weld length,outside misalignment

·Each package contains one bridge cam gauge.every item will be packaged is a synthetic leather bag and with a papery operating manual.easy to carry

Measure Method and Range--Metric 1.Seam Reinforcement:0-25 mm 2.Fillet Leg Length:0-25 mm 3.Fillet Throat Size:0-20mm 4.Undercut / Pit Depth:0-2mm 5.Outside Misalignment:0-25mm 6.Bevel Angle:0-60° Measure Method and Range--Inch 1.Seam Reinforcement: 0-1'' 2.Fillet Leg Length: 0-1'' 3.Fillet Throat Size: 0-3/4'' 4.Undercut / Pit Depth: 0-1/8'' 5.Outside Misalignment: 0-1'' 6.Bevel Angle:0-60° More Features ✔Measure Weld Reinforcement ✔Measure Fillet Weld Leg Length ✔Measure Fittel Weld Throat Dimension ✔Measure Undercuts or Pits ✔Measure Angle of Preparation ✔Measure Outsideu Misalignment
