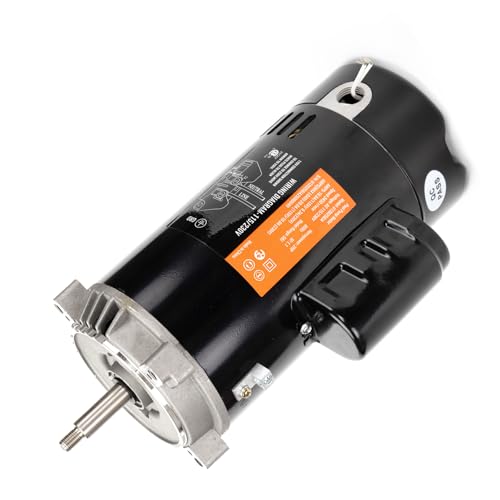

Upgraded 2 HP UST1202 Swimming Pool Pump Motor Fit for Hayward Super Super II Max Flow Max-Flow pumps Northstar Jacuzzi Magnum Pump, 115/230 V Pool Pump Motor - 2.0 HP — Open-Box, 35% Off

[Perfect Compatibility & Easy Replacement]: The UST1202 Swimming Pool Pump Motor has a threaded shaft and fits most pumps that require a round flange motor. It is compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps. it features precisely matched mounting holes and threaded shaft for a perfect fit. Enjoy a quick, tool-free installation in minutes without any modifications. Please check your old motor part numbers (e.g., SP1615Z1M, C48M2N111) for confirmation. [Powerful Performance & Energy Efficient]: Equipped with a high-performance Up-Rated 2.0 HP and a 3450 RPM speed, this motor delivers powerful water circulation and optimal pressure for your pool system. The optimally engineered core is designed not only for superior performance but also for reducing energy consumption, helping you save on long-term operational costs and achieving the perfect balance of power and efficiency. [Premium Quality & Long-Lasting Durability]: Built to last with uncompromising quality. Key components feature a 303 Stainless Steel threaded shaft and 100% Copper Wire windings, offering exceptional corrosion and rust resistance. The robust housing with IP55 waterproof rating effectively protects against moisture, pool chemicals, and harsh weather, ensuring stable operation and an extended service life in demanding pool environments. [Quiet Operation & Reliable Safety]: Advanced dynamic balance technology and high-quality bearings ensure smooth, quiet, and low-vibration operation, providing a tranquil poolside environment for you and your family. The scientific internal design promotes excellent heat dissipation and includes overload protection, guaranteeing safe and reliable performance throughout its lifespan. [Worry-Free Support & Quality Promise]: We are ready to assist you within 24 hours of any installation or replacement queries and have a 90-day return policy to provide you with a seamless experience. (Contact us via Amazon Message)

UST1202 Swimming Pool Pump Motor and Seal Replacement Kit

compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps.

Product Specifications：

• Horsepower: 2 HP
• Motor Flange: 56J
• Voltage: AC 115/230V
• Frequency: 60Hz
• Speed: 3450 r/min
• AMPS: 18.6A(115V)/9.3A(230V)

Reliable protection and security:

• High-quality windings, Maximum operating  temperature 155°C (311°F)
• Features overload protection
• Insulation class F

Operation guide:

Before use, ensure proper operation of the motor and water pump. If any abnormalities are detected, promptly repair or replace them.

Pay attention to matching the rated power of the motor with that of the water pump. Exceeding the motor's rated power may cause overheating or failure.

Take care of the working environment of the electric motor and water pump to prevent overheating or water ingress. Install the electric motor in a waterproof environment for safe usage.

Regularly maintain and service the electric motor to ensure its uninterrupted operation.

OMMON PROBLEMS AND REMEDIES

Problem 1:

When you receive the motor, please check whether the front shaft of themotor can rotate. if you find that manual rotation is not possible.

Solution:

The concentricity of the motor may be damaged during transportation. Please contact the after-sales for processing.

Problem 2:

The motor does not work when it is powered on.

Solution:

1) Please check the power supply to make sure the output voltage iscorrect.

2) Please check the wiring carefully to make sure it's the same as thewiring diagram.

Problem 3:

After the motor is powered on, it rotates slowly and cannot be startednormally.

Solution:

1) Piease check the power supply to make sure the output voltage iscorrect.

2) Please check the wiring carefully to make sure it's the same as thewiring diagram.

3) Check whether the motor protector is intact and there is no open circuit.

Problem 4:

After running for a period of time, the motor heats up and stops working

Solution:

Motor overloaded running, protector function. After half an hour of cooling,try again.
