Universal Air Compressor Pressure Switch Control Valve (90-120 PSI, 110V-240V) with 0-180 PSI Regulator and Safety Pressure Relief Valve - 4 Way Replacement Part (One way-C8) — Open-Box, 61% Off

1. Pressure Range: 95-125 PSI When pressure drops below 95 PSI, the switch activates the compressor to increase pressure. When pressure reaches 125 PSI, the switch deactivates the compressor.

2. Voltage: 110V-240V The switch can operate at a variety of voltage levels for use in different regions and power types.

3. 4-Way Design: 4-way pressure switches typically have multiple connections for air compressor tanks, compressor motors, and other accessories.

4. Pressure Gauge (0-180 PSI): The included pressure gauge measures the pressure inside the compressor tank. The range of 0 to 180 PSI allows you to monitor the pressure and ensure it remains within safe operating limits.

5. Safety Pressure Relief Valve: Prevents over-pressurization of the compressor tank. If pressure exceeds the safe limit, the relief valve opens to release excess air and reduce pressure.

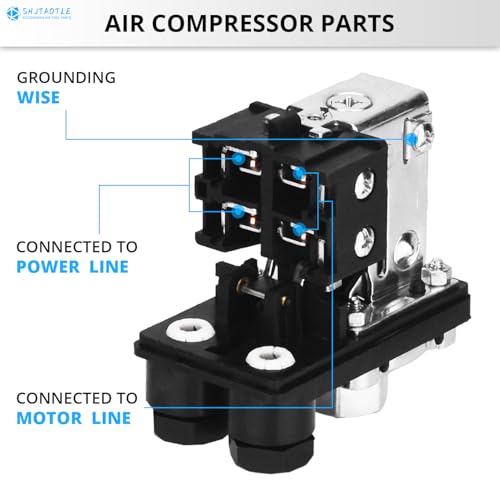

6. Installation and Usage Tips Wiring: Make sure you connect the switch to the correct voltage specified (110V - 240V). Wiring errors can damage the switch or create a safety hazard.

7. Installation and Usage Tips Port Connections: Connect the air compressor input and output lines securely to the corresponding ports on the pressure switch. Use thread seal tape to ensure that the connections are sealed and prevent leaks.

8. Pressure Gauge: Install the pressure gauge in an easily visible location. Check the pressure gauge regularly to monitor system pressure. Pressure Relief Valve: Make sure the safety relief valve is properly installed and unobstructed. Test the valve regularly to ensure it is functioning properly.

Maintenance - Regularly check the pressure switch and its components for signs of wear or damage. - Clean the pressure gauge and pressure relief valve to ensure accurate readings and proper function. - Promptly replace any worn or damaged parts to maintain the efficiency and safety of the air compressor system. Safety Precautions - Always disconnect the power supply before performing any maintenance or adjustments. - Make sure that the pressure in the air compressor tank has been released before removing or installing the pressure switch. - Follow the manufacturer's installation and maintenance guidelines and specifications. Troubleshooting Common Problems - **Inconsistent Pressure**: Check the system for leaks or a malfunctioning pressure switch. - **Pressure switch not activating/deactivating**: Check wiring connections and ensure switch is set correctly. - **Pressure relief valve frequently actuating**: This could indicate the pressure switch is not regulating pressure correctly, or there is an issue with the compressor motor. If you have a specific model or additional details, providing that information will help provide more accurate advice.
