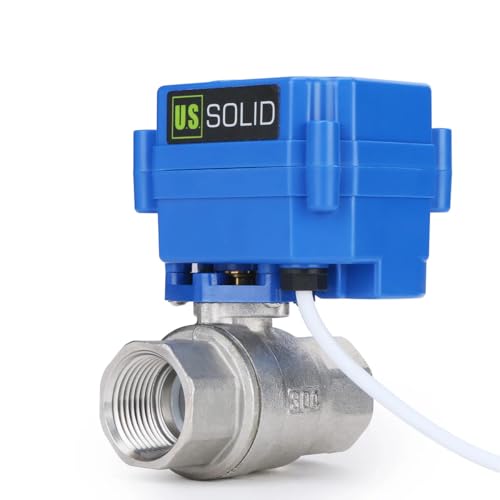

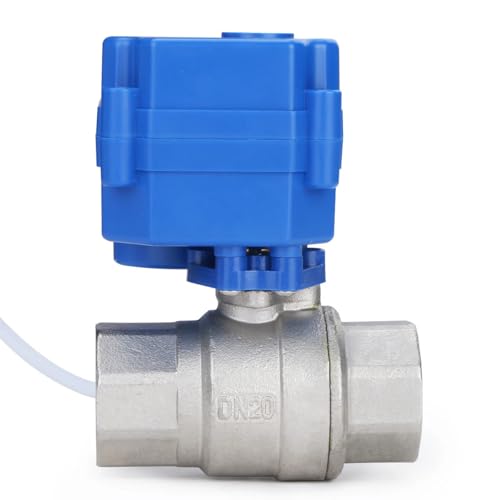

U.S. Solid Motorized Ball Valve- 3/4" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup, Normally Open

SAFE AND RELIABLE- Made of 304 stainless steel, this valve is safe and reliable; The estimated life expectancy of 80,000 to 100,000 cycles means it is built to last NPT THREADING-¾” quality brass thread, manufactured and measured according to National Pipe Thread standards; This electrical ball valve is full port, meaning the bore in the ball is a full ¾”; This minimizes pressure loss through the valve; Perfect for home automation projects 9V-24V DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; Limit switch minimizes power after valve is fully closed; Ideal for projects where an automatic return is necessary 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energizes after closing; Returns to fully open if power is removed ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves

The U.S. Solid ¾” motorized ball valve in stainless steel with automatic return is a blessing to many a home tinkerer. The body and stem on this valve are made of SS304 stainless steel. This material is safe for drinking water, which is important since water systems are one of the most common uses for motorized ball valves. The valve will actuate when 9V to 24V of DC power are brought to it. In this automatic return valve, the valve is Normally Open. When energized, it will close in 3-5 seconds. Afterwards, limit switches will keep the energy output to a negligible amount. If power gets cut out, the valve will again return to a open position. Most solenoid valves are fully energized whilst closed, which can lead to overheating. This valve takes in such little energy once fully closed, that it will NEVER overheat. Additionally, this valve comes with an IP rating of 65. This ingress protection level means the casing will keep the electronics free of any dust, and is safe even when being sprayed with water from any direction.
The applications of motorized ball valves are varied. They can be used in HVAC systems, for water recirculation, or in conjunction with any number of home automation devices. This versatility, along with the superior craftsmanship, means that U.S. Solid motorized ball valves will become your valve of choice going forward.

Specifications:
Valve Material: SS304
Ball Seat: PTFE
Seal: EPDM
Close/Open Time: 3-5 Seconds
Working Voltage: 9-24V DC
Max Power: 2W
Max Torque: 2 N m
Max Pressure: 1.0Mpa
Temperature range for Flow Medium: 0°C to 90°C
Ambient Temperature Range: -10°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Full
Thread Type: NPT
