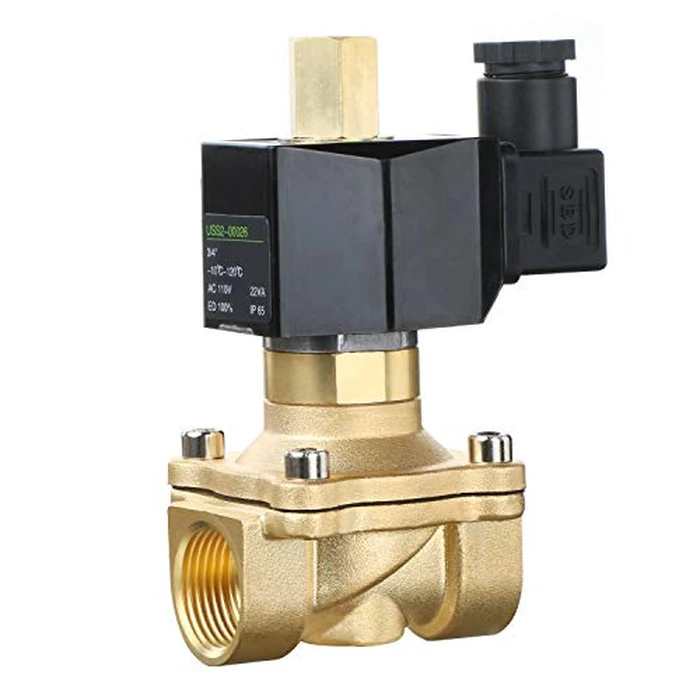

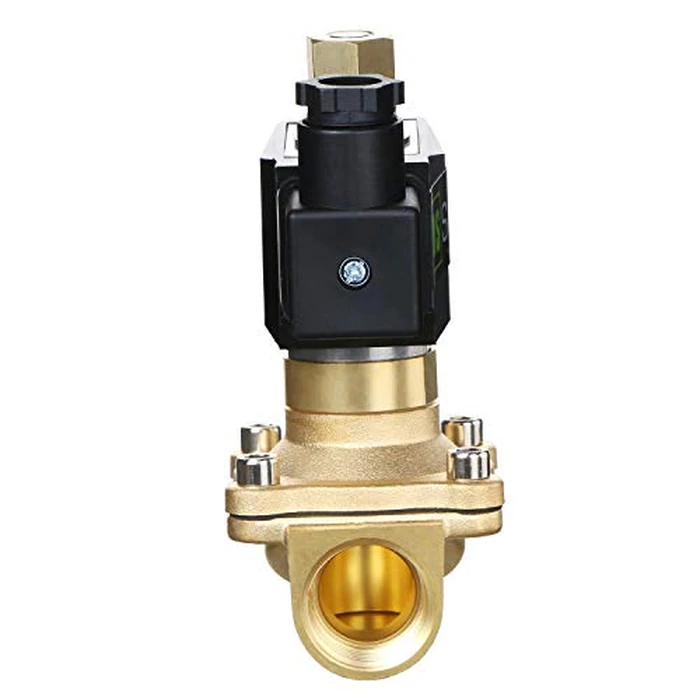

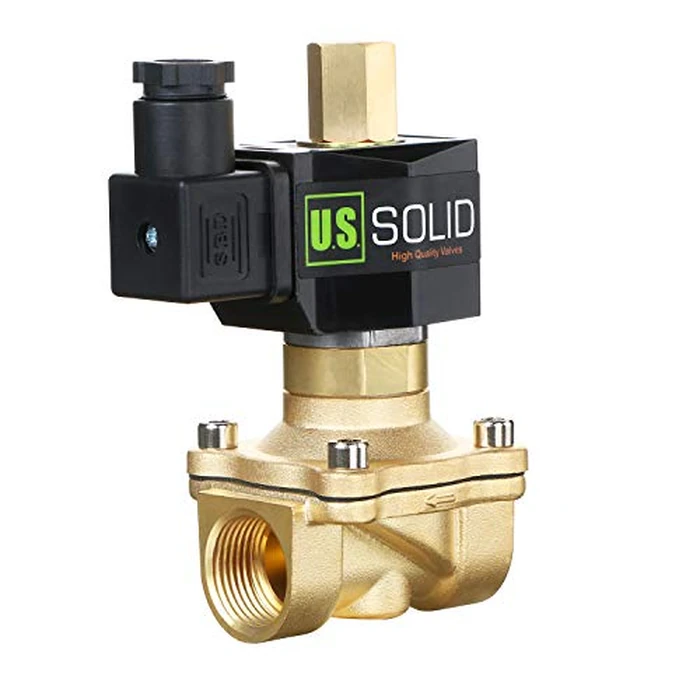

U.S. Solid 3/4" Brass Electric Solenoid Valve 110V AC NPT Normally Open Air Gas Non-potable Water Viton

• Industrial-Grade Material: Crafted from industrial-grade brass, this valve delivers excellent durability, natural resistance to rust and mild corrosion, and exceptional machinability for precise fitting. It is compatible with diesel fuel, natural gas, air, and safe for drinking water or other water-based projects—with added advantage of brass’s inherent non-toxicity, making it ideal for potable water applications. • Swift Response: Engineered for rapid actuation, this valve can open or close in less than a second when triggered, ensuring immediate flow control during operation. Under proper maintenance and standard operating conditions, our engineers estimate its life cycle to exceed a million cycles—with brass’s wear resistance helping maintain consistent performance over time. • Normally Open: In its default state, the solenoid's magnetic field moves the plunger to close the orifice, blocking any fluid or gas flow. This configuration reverses when the solenoid is energized (plunger retracts to open the orifice), with brass’s structural stability ensuring reliable plunger movement and consistent sealing performance. • Viton Gasket: Equipped with a Viton gasket—an advanced material celebrated for its chemical inertness—this valve excels with gasoline, kerosene, and other organic solvents. Avoid solenoid valves with NBR gaskets marketed for gasoline use: NBR is prone to corrosion when in contact with petroleum-based fluids, which can lead to severe leaks and safety hazards. • Versatile Applications: The direct-acting brass solenoid valve is well-suited for diverse industries, including water treatment, chemical processing, power generation, and healthcare. Its fast, precise fluid control makes it perfect for use cases ranging from brewing systems (where brass’s non-reactive properties protect liquid purity) to automatic irrigation, as well as residential plumbing and beverage dispensing setups.

U.S. Solid normally open (N/O) electric solenoid valve is constructed with a durable brass body, three-quarter inch (3/4") female threaded (NPT) connections, and VITON gasket.

Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst) and gasoline or other petroleum based liquids. Customers chose this general purpose valve for supplemental gas tanks, sprinkler systems, and more. Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities. Suitable for outdoor use; not for use underwater.

Brand: U.S. Solid

Model: USS2-00026

Size: 3/4"

Flow Aperture: 20 mm

Body Material: Brass

Gasket / Diaphragm / Seal: VITON

Rated voltage: AC 110V, ± 10%

Current: 0.2 A

Power rating: 22 VA

Operation Type: Semi-direct lift valve

Operation Mode: Normally open

Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)

Flow capacity: 7.6 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI

Flow value: 7.6 Cv

Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)

Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)

Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.

OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 80℃. It is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8h the coil may burn.
