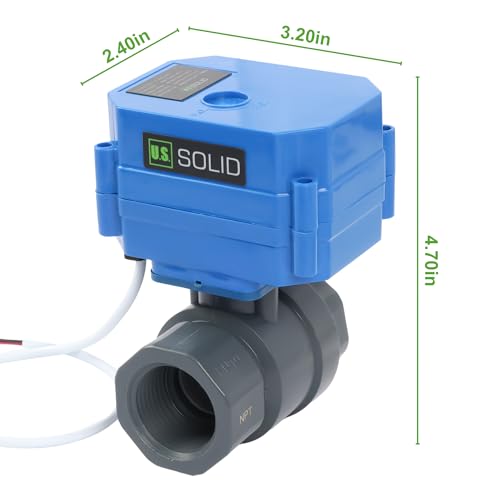

U.S. Solid 1 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Open, Standard Port 23 mm Bore, IP65 — Open-Box, 22% Off
Brand: U.S. Solid
Condition: Used - Mint
$3709
$4737
-22% Save $1028
Updated: 50 days ago
Description
CORROSION-RESISTANT UPVC BODY: Rugged plastic valve body resists rust, acids, alkalis, and harsh chemicals; standard-port 23 mm bore delivers reliable, efficient flow control for water and other non-flammable liquids
NORMALLY OPEN AUTO RETURN: The 2-wire auto-return design drives the valve fully closed when energized and automatically returns to the fully open position during power loss, so the line defaults open for cooling loops and fail-open safety
LOW-POWER SOLENOID ALTERNATIVE: Runs on 9 to 24 V AC/DC drawing 5 W and cycles in 6 to 8 seconds; once fully closed, an internal limit switch cuts main motor power to draw minimal maintenance current with little heat
IP65 WEATHERPROOF RATED: Sealed housing seals against dust and low-pressure water jets; the PTFE seat keeps a tight, leak-proof seal across 32°F to 140°F (0°C to 60°C) media temperatures for outdoor or aquaculture installs
LEAD-FREE AND LONG LIFE: Lead-free UPVC construction is safe for drinking water, irrigation, and hydroponics; standard 1 in NPT threads simplify installation with a rated service life of 80,000 to 100,000 cycles
The U.S. Solid 1 in UPVC motorized ball valve is an electric 2-way shut-off valve designed to automatically open and close water, seawater, wastewater, and dilute chemical lines using 9 to 24 V AC/DC power. Its corrosion-resistant UPVC body and standard-port 23 mm bore deliver efficient, reliable flow control, while the auto-return actuator drives the valve fully closed when energized and automatically returns to the fully open position on power loss, so the line defaults open for fail-open safety.
Operating at just 5 W, the valve cycles in 6 to 8 seconds; once fully closed, an internal limit switch cuts main motor power, drawing minimal maintenance current with little to no heat buildup compared with continuously energized solenoid valves. Lead-free UPVC material, a PTFE seat, and an IP65-sealed enclosure keep the valve tight and weather-resistant for outdoor irrigation, pool and aquarium plumbing, and hydroponics.
Specifications:
Brand: U.S. Solid
Size: 1 in
Body Material: UPVC (Corrosion-Resistant Plastic)
Valve Type: 2-Way Standard Port Motorized Ball Valve
Working Voltage: 9 to 24 V AC/DC
Max Power: 5 W
Max Working Pressure: 1.0 MPa (145 psi) at 20°C
Open/Close Time: 6-8 s
Max Torque: 6 Nm
Wiring: 2-Wire Auto Return
Control Type: Normally Open (Auto-Return to Open on Power Loss)
Flow Aperture: 23 mm
Bore Type: Standard Port
Thread Type: NPT
Ball Seat: PTFE
Media Temperature: 32°F to 140°F (0°C to 60°C)
Ambient Temperature: 14°F to 104°F (-10°C to 40°C)
Enclosure Rating: IP65
Service Life: 80,000-100,000 cycles
Suitable Media: Water, Drinking Water, Seawater, Wastewater, Dilute Acid and Alkali Solutions
Operating at just 5 W, the valve cycles in 6 to 8 seconds; once fully closed, an internal limit switch cuts main motor power, drawing minimal maintenance current with little to no heat buildup compared with continuously energized solenoid valves. Lead-free UPVC material, a PTFE seat, and an IP65-sealed enclosure keep the valve tight and weather-resistant for outdoor irrigation, pool and aquarium plumbing, and hydroponics.
Specifications:
Brand: U.S. Solid
Size: 1 in
Body Material: UPVC (Corrosion-Resistant Plastic)
Valve Type: 2-Way Standard Port Motorized Ball Valve
Working Voltage: 9 to 24 V AC/DC
Max Power: 5 W
Max Working Pressure: 1.0 MPa (145 psi) at 20°C
Open/Close Time: 6-8 s
Max Torque: 6 Nm
Wiring: 2-Wire Auto Return
Control Type: Normally Open (Auto-Return to Open on Power Loss)
Flow Aperture: 23 mm
Bore Type: Standard Port
Thread Type: NPT
Ball Seat: PTFE
Media Temperature: 32°F to 140°F (0°C to 60°C)
Ambient Temperature: 14°F to 104°F (-10°C to 40°C)
Enclosure Rating: IP65
Service Life: 80,000-100,000 cycles
Suitable Media: Water, Drinking Water, Seawater, Wastewater, Dilute Acid and Alkali Solutions
