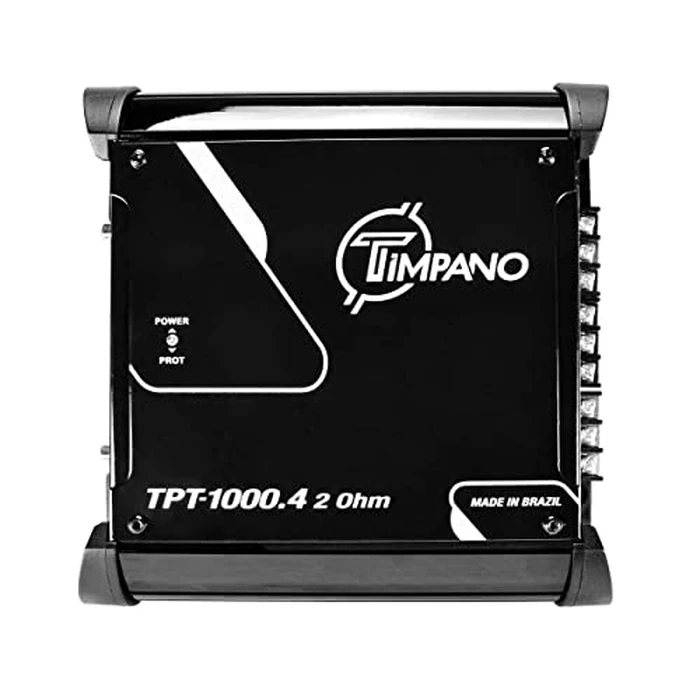

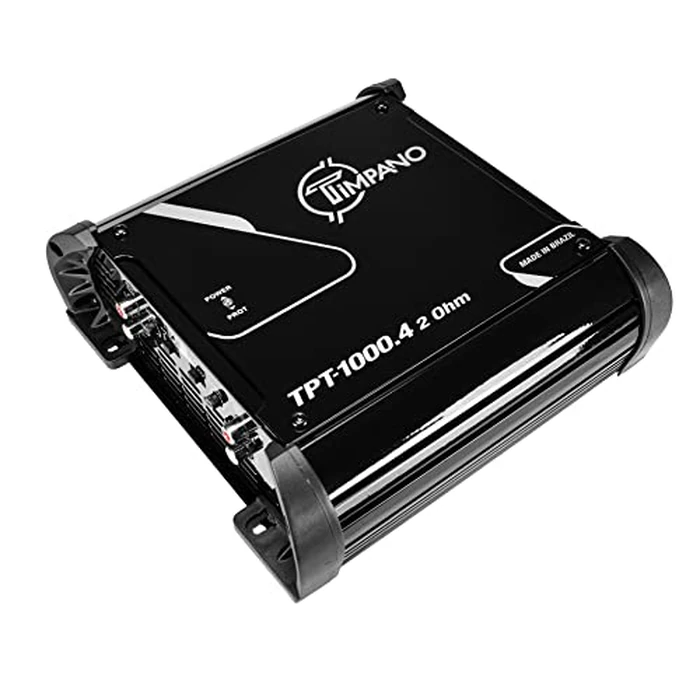

Timpano TPT-1000.4 Compact 4 Channel Car Audio Amplifier - 4 x 260 Watts at 2 Ohms - High Power Stereo 12 Volts Full Range Class D Amp Bridgeable

• COMPACT DESIGN: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.11″ depth x 8.11″ width x 2.60″ height • POWER: This amplifier is designed to run your stereo system with the power it needs to perform! 1200 Watts maximum dynamic RMS power output of 4x 300 Watts at 2 Ohm per channel. Its high efficiency rate of 84% provides more power with less battery consumption. • BRIDGEABLE: Double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohm per bridged channel at output power of 2 x 520 Watts RMS. • TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 20 to 26,000Hz was used to give the best sound reproduction on this tiny amplifier. • FEATURES: Fork terminal connector power and speaker wire Inputs. Built-in crossover filters for easy tuning! Choose between a fixed HPF at 90Hz or LPF at 90Hz or just turn it FLAT and use your external crossover or DSP settings. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.

Timpano Compact 4 Channel TPT1000.4 Car Audio Amplifier – 4x 260 Watts at 2 Ohm – High Power Stereo 12 volts Fullrange Class D Amp Bridgeable

Small Footprint Technology!

Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D full range amplifier.

COMPACT DESIGN: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.11″ depth x 8.11″ width x 2.60″ height

POWER: This amplifier is designed to run your stereo system with the power it needs to perform! 1200 Watts maximum dynamic RMS power output of 4x 300 Watts at 2 Ohm per channel. Its high efficiency rate of 84% provides more power with less battery consumption.

BRIDGEABLE: Double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohm per bridged channel at output power of 2 x 520 Watts RMS

TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 20 to 26,000Hz was used to give the best sound reproduction on this tiny amplifier.

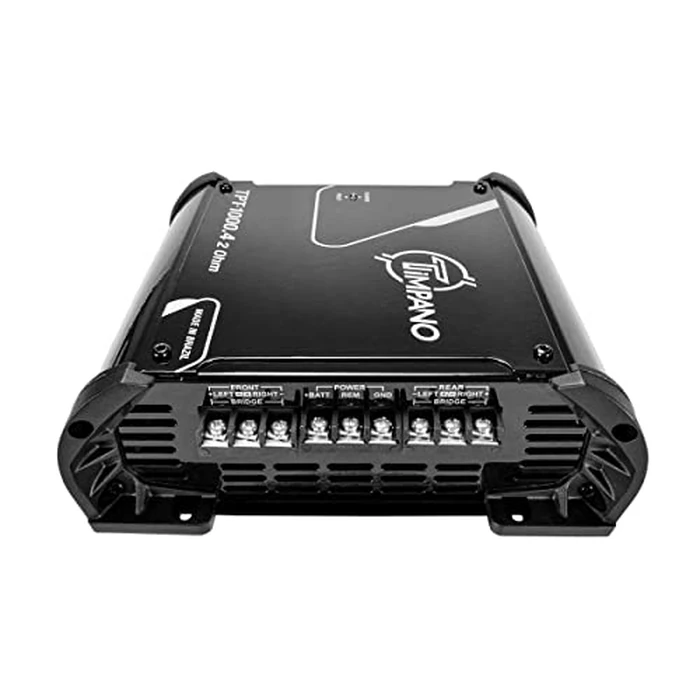

FEATURES: Fork terminal connector power and speaker wire Inputs. Built-in crossover filters for easy tuning! Choose between a fixed HPF at 90Hz or LPF at 90Hz or just turn it FLAT and use your external crossover or DSP settings. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.Additional Information:

Number of Channels: 4

Max Dynamic Output: 4 x 300 Watts RMS 2 Ohm

4x 225 Watts RMS Power at 2 Ohm 12.6 Volts

4x 140 Watts RMS Power at 4 Ohm 12.6 Volts

Bridged 2x 450 Watts RMS Power at 4 Ohm 12.6 Volts

Supply Voltage: 11 ~ 16V

Frequency Response: 20Hz ~ 26KHz

Crossover Low Pass: Fixed at 90Hz

Crossover High Pass: Fixed at 90Hz

Signal to Noise: > 90 dB

Harmonic Distortion: < 0.9 % THD

Input Sensitivity: 0.2 V

Input Impedance: 14K Ohm

Impedance Output: 2 Ohm

Consumption with Signal Musical: 4A ~ 50A

Dimensions (L x W x H): 8.11” x 8.11” x 2.60”

Weight: 3.75 Lbs

Before Installing:

Recommended fuse or circuit breaker – 60A

Power Wire Inputs – (OFC) 4 Gauge wire with spade terminals

Speakers Wire Output – ( OFC) 14 Gauge wire
