TCTAuto 10AN (5/8") Hose 5Ft Universal Stainless Steel Braided CPE Oil Gas Fuel Hose Fuel Line

Package includes: 5Ft 10AN stainless steel braided fuel line. Mostly worked with coolant, fuel, diesel, oil, hydraulic fluid, pump gas, alcohol and air, pump, oil return, fuel return system, turbo cooler system and transmission system. NOT FIT E85. Made of Polyurethane(CPE) on the inside that gives them high chemical and heat resistance, along with a braided stainless steel outside which gives them high durability, extreme pressure resistance, and a professional and high-tech appearance. Working Temperature: -40 F to 248 F(-40°C to +120°C) under most operating conditions. Working Pressure: 1015 PSI. Burst Pressure: 6090 PSI. We offer 2 Years Warranty of all the products in our store, freely contact us if you have any questions.

Application:
1) For use with fuel systems, methanol, oils, lubricants, coolant system, and vacuum applications.
2) Suitable for fuel, lube, alcohol, ethanol, coolant, and air for automobiles or marine engines, most suitable for racing cars & motor racing bikes.
3) This hose isn't suitable for brake fluid and is not to be used near extreme heat sources such as a turbocharger.

Specification:
Size: AN-10
Length: 5Ft
Hose Color: Silver

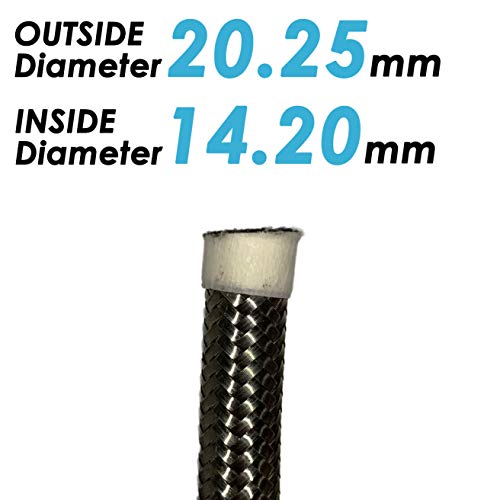

Inner diameter(ID): 14.2 mm (0.56 inch)
Outside diameter(OD): 20.24 mm (0.80 inch)
Inner hose Material: CPE material hose
Outside Material: Stainless Steel
Working Temperature:-40F to 248F (-40°C to +120°C) under most operating conditions.
Working Pressure: 1015 PSI. Burst pressure: 6090 PSI

Package Includes:
5Ft 10AN(5/8") Stainless Steel Braided Fuel Hose

Q&A
How to Cut:
For cutting your new steel braided hose to the length you will need:
1) Cutting wheel/ hack saw/ or steel braided hose cutters
2) Duct tape or electrical tape (work best)

Step:
1) Measure your hose and find the desired length.
2) Tape hose at the measured length needed for the application.
3) Cut hose threw the tape you have placed. Keep the steel braid from fraying.
4) Remove the tape.
5) Slide one end of the hose into the end of the fitting.
6) Insert the other half of fitting into the hose and begin to push and screw the fitting together.
7) Make sure all connections are tight.

Notice:
1) Avoid twisting hose when installing.
2) Allow some slack in assembly for changes in length that occur under pressure.
3) Provide a smooth bend radius when routing the hose line.
4) Avoid sharp bends which may cause the hose to collapse and restrict flow.
5) After installation, test assembly for an interval of 30 to 60 seconds by using twice maximum operating pressure.
