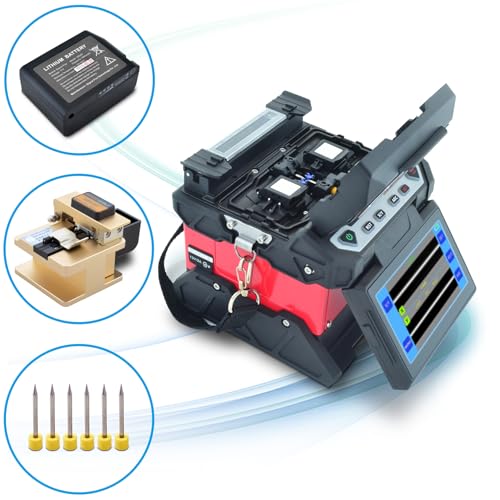

SUWOLF 4.3" Touch LCD Screen High Precision Fiber Optic Fusion Splicer Machine for SM, MM, NZ-DS, EDF Fibers with Optical Fiber Cleaver and Automatic Focus Function(FS39A)

【Core Alignment Technology】--SUWOLF FS39 fusion splicer has two high precision CMOS Camera which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the CMOS Camera allow the splicer to discriminate between fiber types. 【Wide Compatibility】--SUWOLF FS39 is compatible with ITU-T SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) ED for telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance.Widely used for SM and MM Quartz Fiber with Cable indoor and 0.25mm,0.9mm fiber, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. 【High Reliability】--The rugged construction plus improved reliability by resisting shock, dust, and rain;The new wind-cover design, enhance the ability to prevent the dust & wind, Max.wind velocity of 15m/s;Built-in super high-brightness LED supply convenience for night work. 【Easy to use and Efficient work】--Auto splicing, auto arc optimization, auto heating function, Auto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation so on;Built-in counter to warn replace electrode; Ready-package battery with electric quantity indicator, convenient carrying and change; Between X/Y single screen and X&Y easily switch; splicing time less than 7s, and heating time less than 15s (adjustable). 【Portable Design】--Very Small size and light weight--only 208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.0(H)inch and Only 1.36kg/3lb (with battery); High strength portable straps design is convenient for hanging and operating; 4.3” outdoor-enhanced TFT LCD display with X/Y / X / Y Auto turn-over function, FS39 Built in 11.1V 4000mah Lithium battery,It can provide 300+ (splice + heating) circles; Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment. SUWOLF Optical Fiber Fusion Splicer , FTTH Core Alignment Optical Fiber Splicing Machine with 6PCS Electrodes + 16blades Fiber Cleaver + Fiber Stripper

The FS39 Series Fusion splicer adopt high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 7S typically, TFT LCD monitor touch displays all steps of fiber fusion clear at a glance.

Features:
>The rugged construction plus improved reliability by resisting shock, dust, and rain.
>4.3 inch TFT color LCD monitor with anti-reflective coating.
>The advanced core to core fiber profile alignment system(PAS).
>X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times.
>7 seconds splicing time, 15 seconds Heat-Shrinking.
>Battery capacity was display in real time, precisely.
>Built-in high capacity battery, support 240 cycles(splicing /tube heating), to meet one days’work.

Technical Specifications

Fiber Types:Single mode (ITU-T G.652), multimode (ITU-T G.651), dispersion shifted (ITU-T G.653), non-zero dispersion shifted (ITU-T G.655),and other SMF including ITU-T G657 fibers
Average Splicing Loss:0.02dB with G.652and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655
Return Loss:≥60dB
Tension Test:2.0N(200gf)（Standard）
Splicing Program:100 groups
Protection Sleeve Length:10mm~60mm
Language: English, French, Italian, Portuguese, Spanish
Environmental Conditions:-10～+50℃(operation temperature),0～95% RH(humidity), 0～5000m(altitude)
Power Supply: AC adaptor: 100～240V input voltage, 50/60Hz; 11.1V, 5A output voltage
