Surpass Hobby RC Brushless Motor ESC Combo Waterproof 2430 5800KV Brushless Motor and 35A ESC Combo Set for 1/16 1/18 Remote Control Cars Trucks Off-Road Vehicle

Sutable for 1/16 &1/18 RC Car: Our 2430 Brushless motor designed for 1/14,1/16&1/18 RC cars with M2.5 and M3 screw mounting holes such as on-road car /off-road/ buggy/ monster, cool black appearance;It's made of CNC machined 6061-T6 heat sink and excellent heat dissipation; with excellent start-up,acceleration and linearity features, strong resistant current capability. Waterproof & Dustproof Design : Surpass Hobby 2430 brushless motor and 35A brushless ESC which is waterproof and dustproof for all weather races. allowing for RC car handling in various environments (Note: Please remove the cooling fan before using this ESC in water; Clean and blow dry after use to prevent connector rust) Upgrade Materials： These hobby brushless motor cover is made of high hardness CNC aluminum and 0.35mm thickness silicon steel sheet. The high purity and high temperature resistant copper coil effectively provides high efficiency, while the ABEC5 high-precision large bearings offer smooth and wear-resistant operation Multiple Protection: Our 2430 Series brushless motor and 35A ESC set with multiple protection,such as low voltage cut-off protection for lithium or nickel battery,over-heat protection, throttle signal loss protection and motor blocked protection.along with strong current resistance and excellent heat dissipation. When protecting the motor, the LED light will flash and there will be a buzzer sound Notice for Use: Waterproof 35A ESC built with high quality components to ensure high efficiency operation, it works prefectly with 2S lipo battery. if your car works with 3-4S battery, you can choose 120-150A ESC. Please read the instructions carefully before use.

Surpass Hobby RC Brushless Motor ESC Combo Waterproof 2430 5800KV Brushless Motor and 35A ESC Combo Set for 1/16 1/18 Remote Control Cars Trucks Off-Road Vehicle

FEATURE:

2430 Brushless Motor

1. Fits all 1/16th or1/18th scale BL cars,M2.5 or M3 screw mounting holes

2.High hardness aluminum CNC case,0.35mm stator.

3.High Purity High temperature resistance Copper Windings Maximizes Efficiency .

4.High precision and high quality ABEC5 large bearing, smooth and wear-resistant.

5.Removable/replaceable explosion-proof high-precision balancing rotor.

6.4 Pole 12 Slot Hi-torque rotor design,stable output power.

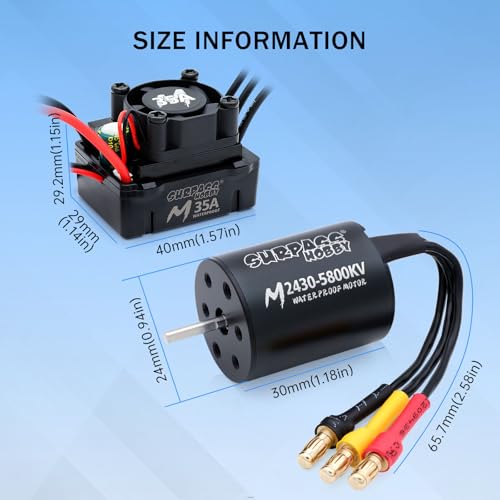

Specifications:

Watts: 200W

Max voltage: <10.8V Max Amps: 19A

KV(RPM/Volt): 5800KV

Max RPM: 60000

Plug type: 3.5mm golden banana plug

Shaft length: 12mm

Shaft diameter: 2.0mm

Diameter: 24mm

Length: 30mm

Weight: 46g



35A Brushless ESC

1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

2.Specially designed for RC car with excellent start-up, acceleration and linearity features.

3.Compatible with sensorless brushless motor.

4.The strong resistant current capability,excellent heat dissipation.

5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery /Throttle signal loss protection / Motor blocked protection.

6.Low voltage cut-off protection the motor emits"Beep-Beep" and the LED flashes.

7.Built-in switch-mode BEC 5.3V/2A (M35A Built-in analog-mode BEC 5V/2A) for usage with high torque and high voltage servos.                        8. Easily programmed and compatible with pocket-sized program card.

Specifications:

Cont/Burst Current: 35A/1200A

Motor Type: Sensorless brushless motor

Resistance: 0.0021ohm

Battery: 2-3cells Lipo/ 4-9cells NiMH

BEC Output: 5V/2A(Analog mode)

Diamension:40X 29 X 29.2mm (1.57 x 1.14 x 1.15in)

WARNINGS:

1.Before using , Ensure that the power system is reasonable. Unreasonable power matching will cause the motor to be damaged due to overload.

2.Do not over tighten the screws when installing the motor. Be sure to use the appropriate mountings crews.

3.Before connecting the motor, Ensure that The insulated parts are well treated, Short circuit will destroy the product.

4.Full throttle operation is prohibited before the gear is installed. High-speed operation without load may damage the motor.

5.Be sure to connect the components correctly. Wrongly connected remote control car may not work properly, or the components may be damaged or other unpredictable conditions.

6.Avoid the motor operating temperature exceeding 130°c (266'F). High temperature may cause the rotor to demagnetize and damage motor.

7.Do not touch the motor after use to avoid overheating and scalding. Wait for the motor to cool down completely before using it.
