SUPERNIGHT DC 12V Step Up to 24V 10A 240W DC Boost Converter with Fuse Waterproof Voltage Regulator Module Transformer for Golf Cart Club Car LED Strip Light
Brand: SUPERNIGHT
Condition: Used - Like New
$1715
$2599
-35% Save $884
Updated: 8 hours 19 mins ago
Description
• Input Voltage: 12V nominal, Input Current: 10A (max) ; Output Voltage: DC 24V 10A 240W
• Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S. If the product does not function, check whether the positive and negative terminals are reversed. The label on the back of the product provides connection instructions for the positive and negative terminals. Please follow the instructions.
• Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
• Compact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation. Two quick-connect terminals make it easy to quickly connect your devices.
• Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
These dc buck boost converters are excellent power transformers. They feature wide input voltage, low power consumption, high efficiency, great reliability. They can work safely and reliable in -40°C~80°C range. Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.

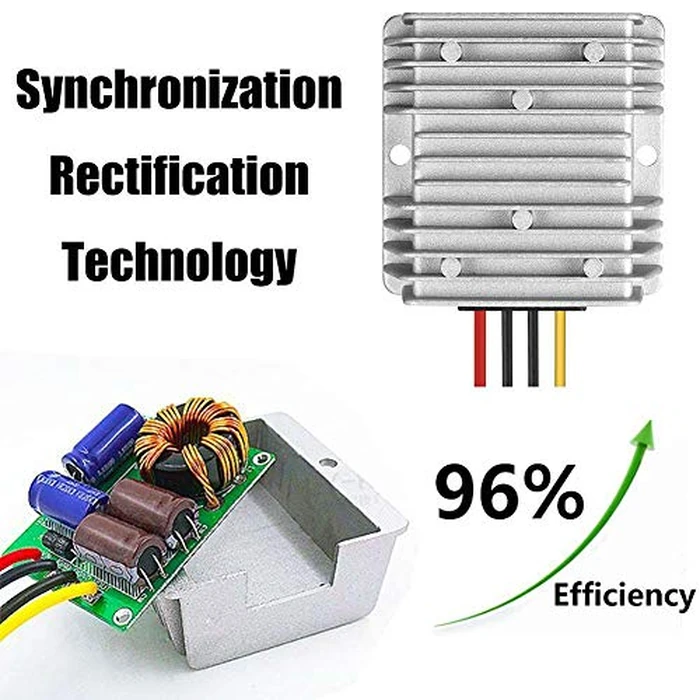

Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency, Maximum Efficiency:≥95%
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
100% Waterproof Module
Compact aluminium shell with epoxy potting is IP68 waterproof, anti-shock, damp-proof , anti-dust protection and better heat dissipation, adapt to a variety of harsh environment and extend service life
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability

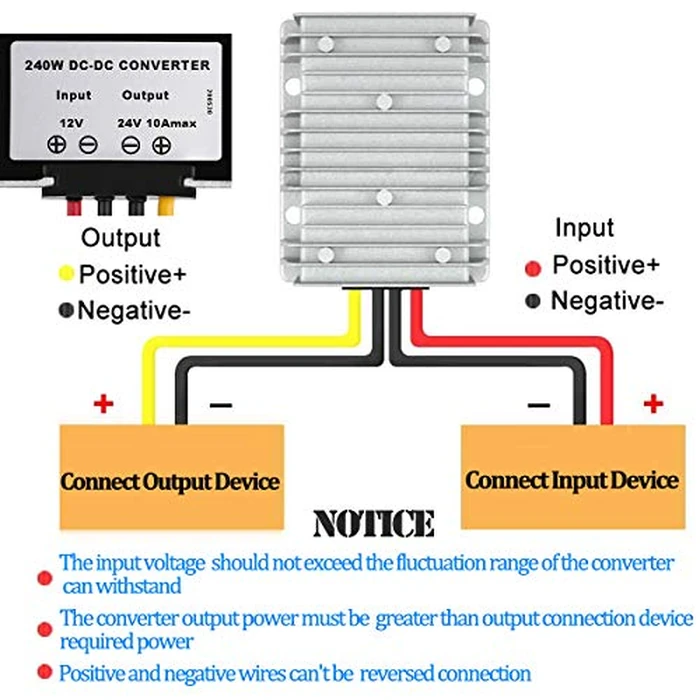

Easy Installation---Positive and negative wires can’t be reversed connection
Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.
Specification:
Input Voltage: 12V nominal
Input Current: 10A (max)
No-load input current: ≤10mA
Output Voltage: DC 24V ±2%
Output Current: 10A
Ripple Wave: 50Mv
Starting Delay time: ≤ 2S
Maximum Efficiency: ≥95%
Non-isolated Module

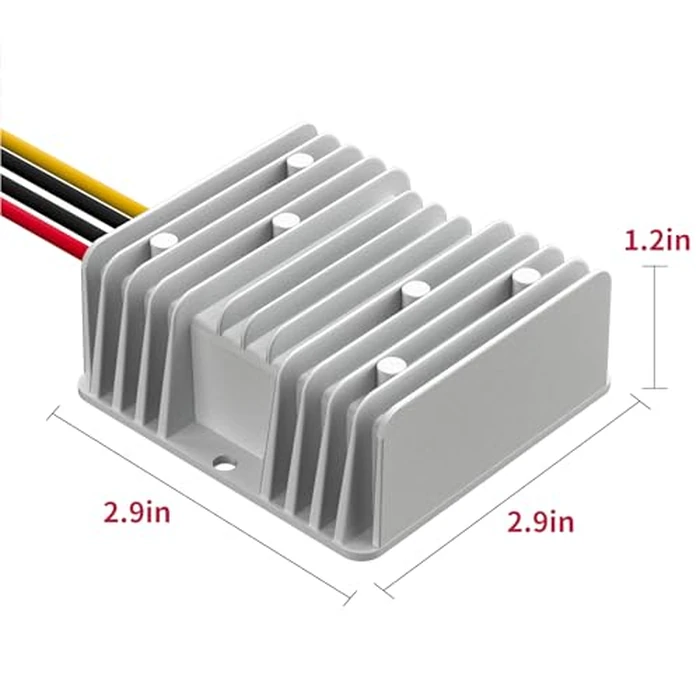

Size: 74mm x74mm x 30mm
Net Weight: 270g / 9.5oz
Package include:
1x Voltage Boost Converter 12V to 24V 10A 240W + 2 pcs connectors
When the product fails to activate the coil, please check the following items:
1. Verify whether the positive and negative terminals are reversed. The label on the back of the product provides connection instructions for the positive and negative terminals. Please follow the instructions.

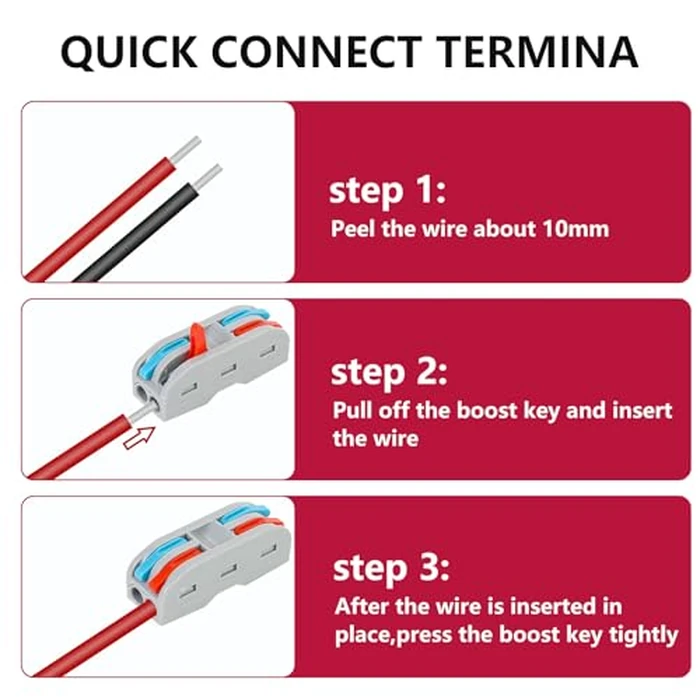

2. Ensure the connector is fully seated on the terminal. For transformer connection wires, strip 10mm of insulation to expose the copper wire, then fully insert the wire into the connector and securely close the connector.
3. The positive and negative terminals of the device connected to the transformer must correspond to the transformer's positive and negative terminals. Reversing the polarity will also cause the device to fail to activate.
Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency, Maximum Efficiency:≥95%
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
100% Waterproof Module
Compact aluminium shell with epoxy potting is IP68 waterproof, anti-shock, damp-proof , anti-dust protection and better heat dissipation, adapt to a variety of harsh environment and extend service life
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability
Easy Installation---Positive and negative wires can’t be reversed connection
Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.
Specification:
Input Voltage: 12V nominal
Input Current: 10A (max)
No-load input current: ≤10mA
Output Voltage: DC 24V ±2%
Output Current: 10A
Ripple Wave: 50Mv
Starting Delay time: ≤ 2S
Maximum Efficiency: ≥95%
Non-isolated Module
Size: 74mm x74mm x 30mm
Net Weight: 270g / 9.5oz
Package include:
1x Voltage Boost Converter 12V to 24V 10A 240W + 2 pcs connectors
When the product fails to activate the coil, please check the following items:
1. Verify whether the positive and negative terminals are reversed. The label on the back of the product provides connection instructions for the positive and negative terminals. Please follow the instructions.
2. Ensure the connector is fully seated on the terminal. For transformer connection wires, strip 10mm of insulation to expose the copper wire, then fully insert the wire into the connector and securely close the connector.
3. The positive and negative terminals of the device connected to the transformer must correspond to the transformer's positive and negative terminals. Reversing the polarity will also cause the device to fail to activate.
Sold by
Amazon Warehouse
Official Amazon outlet for open-box & returned items
- Backed by Amazon's A-to-Z Guarantee
- 30-day return policy
- Ships from Amazon fulfillment centers
- Price verified on Amazon
Product Details
- SKU:
- awhd-us-b089m5qbf9
- Model:
- 12V-24V/10A
- Country:
- US
- ASIN:
- B089M5QBF9
