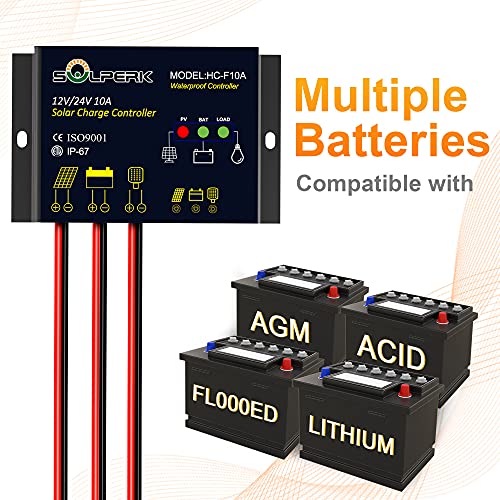

SOLPERK 10A Solar Charge Controller Waterproof Solar Panel Controller 12V/24V PWM Solar Panel Battery Intelligent Regulator for RV Boat car ，with LED Display

✔️【Waterproof Solar Charge Controller】IP67 waterproof, suitable for outdoor use. Automatically identify voltage, 12V Max power: 150W, 24V Max power: 300W. The maximum current is 10A. Compatible with various 12V/24V deep-cycle batteries, such as AGM, GEL, Flooded. Adopting brand MCU chips to realize fast intelligent control and ultra-low standby power consumption. ✔️【Intelligent protection】Intelligent 3-stage PMW charging improves charging efficiency. The solar controller not only extends battery life and improves system performance, but also has multiple protection functions: Battery under-voltage, over-voltage, output overload, short circuit, battery, solar panel anti-back connect protection. ✔️【Indicator Monitoring】You can understand its current working status through the three indicators on the solar panel charge controller. Load normal output: green light is always on; battery is normal: green light is always on; solar panel is charging normally: red light is always on. ✔️【Easy to install and operate】The solar panel controller adopts SAE port, plug and play. A manual with clear connection steps is included. There are 2 pre-drilled holes on the controller, you can install it anywhere according to your needs! ✔️【What You Get】1 solar charger controller, 1 manual. Extended 12 months warranty and our 7*24h technical service support. If you have any questions, please contact us directly.

The waterproof intelligent charge controller features PWM (Pulse Width Modulation) technology to help maintain higher charging efficiency. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection, more safety for using, suitable for home, industrial, commercial etc.

Technical Parameters
For colloid, open battery
Accumulator voltage: 12V/24V
Rated charging current: 5A/10A
Solar open circuit voltage: <55V
Overload, short circuit protection: @1.25 times rated current 30 second protection; @1.5 times rated current 10 second protection;
At least 3 times the rated current is protected immediately
Overcharge protection voltage: 14.5V/29.0V
Overcharge recovery voltage: 14.0V/28.0V
Charge voltage: 13.8V/27.6V
Floating charging voltage: 13.2V/26.4V
Overshoot protection voltage: 11.0V/22.0V
Over release voltage: 12.5V/25.0V
Light control turn on voltage: 3.0V/6.0V
Light control turn off voltage: 7.0V/14.0V
No-load loss:《10mA
Working temperature: -35°C——+65°C
Protection grade/The net weight: IP68/0.15KG
Diameter and length: 1.5mm²,《100mm
Size (length*width*height): 50*81*21mm
