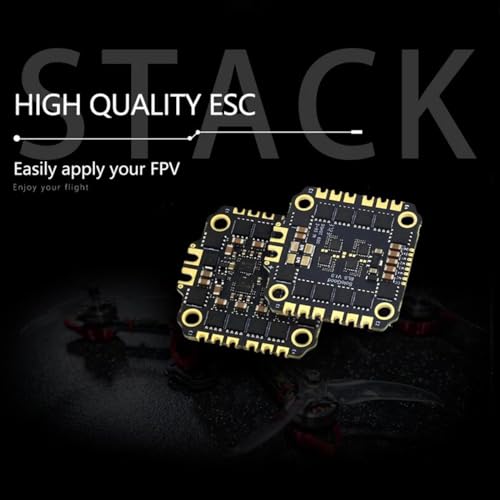

SoloGood F722 FPV Flight Controller Stack ICM42688P F722 Flight Controller with 60A 4in1 ESC 30X30mm 2-6S for FPV Freestyle Drones Parts by SoloGood - Used condition

SoloGood F722 FPV Flight Controller Stack ICM42688P F722 Flight Controller with 60A 4in1 ESC 30X30mm 2-6S for FPV Freestyle Drones Parts

Brand: SoloGood

Condition: Used
$7219
$7599
-5% Save $380
Updated: Yesterday

Description

F722 Flight Controller Stack: Support up to 8 motor outputs to easily build X8 drones Integrated 5V/10V dual BEC ensures stable operation Four LED status indicators display the working status under different states Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners

SoloGood F722 Stack

Input voltage: 3-6S Lipo(11v-26v max)

Installing Hole: 30.5*30.5mm, M3

Support Protocols: DShot600/300

Weight: 23g


FC Specifications:

Main control: STM32F722RET6

Gyroscope: ICM42688P

Barometer: Support (DPS310)

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF722

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30x30mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 60A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)


Sologood BLS60A 4in1 ESC SPEC:

Firmware: BLHELI-S: J-H-30-16.7

Continuous current 55A

Maximum current 60A

Electric dispatch protocol support: DSHOT300/600

Input voltage: 3-6s

Galvanometer: Yes

TVS diode protection: Yes

External capacitor: 1000UF high-frequency electrolytic capacitor

MOS: High performance MOS

Installation hole position 30.5x30.5mm (4mm hole)

Size: 41.5mm X42mm

Weight: 15g
