Shopcorp 4 Pole AC Contactor 120V Coil 63 Amp Normally Open, DIN Rail by SHOPCORP - Used condition

Shopcorp 4 Pole AC Contactor 120V Coil 63 Amp Normally Open, DIN Rail — Open-Box, 12% Off

Name: Shopcorp 4 Pole AC Contactor 120V Coil 63 Amp Normally Open, DIN Rail
Brand: SHOPCORP
SKU: awhd-us-b08lk773jy
Price: 59.07 USD
Availability: InStock

Brand: SHOPCORP

Condition: Used - VeryGood

$59⁰⁷

$66⁸⁹

-12% Save $7⁸²

Updated: 8 days ago

Buy at Amazon.com

Description

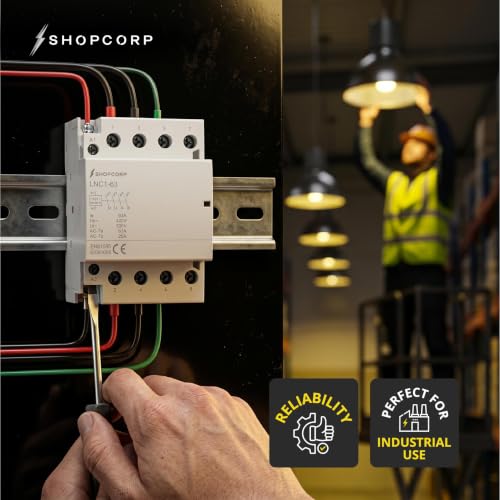

Contactor 120v coil – 63Amp 4 Pole Normally Open (NO) AC contactor for home and industrial uses with 110/120VAC coil. Compatible with 35mm DIN rails and equipped with a power status indicator. Complies with IEC/EN standards for consistent and reliable installation. Ideal as a compressor contactor.

HVAC Parts Applications – Suitable for lighting, motor, or switching tasks. AC-1 for resistance furnaces, incandescent lamps, or electric heaters; and AC-3 for air conditioners, compressors, or fans. Perfect for HVAC contactor and air conditioner contactor applications. Features an energy-saving, silent, and no-humming coil. Ideal for use in HVAC, motor, heating, and refrigeration.

Coil Voltage and Amp Load – Inductive/Motor Load: 40Amp. Resistive/Incandescent Load: 60Amp. DC Load: 30Amp @ 24VDC. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp, and 63 Amp loads. Power Lug Terminal Capacity AWG # 4. Equipped with heavy lug terminals and push-ons for high voltage connections. Suitable as a 50a contactor and 4 pole contactor.

4 Pole Contactor – Contactor IEC 400V. Coil Voltage: 110/120VAC, 50 Hz. Coil load: Inrush 52VA, Sealed 10VA. Ideal for use as a contactor 120v coil and 120v contactor.

Contactor AC Details – IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electrical strength: 4 kV. Operating Temperature: -40…+70 °C (-40…+158 °F). Dimensions (approx.): 54 x 85 x 66 mm / 2.1'' x 3.3'' x 2.6'' (Width x Height x Depth). Designed for easy DIN rail mount installation.

63 Amp 4 Pole Normally Open Contactor for home or industrial uses. With applications in lighting, motor and switching. Technical Specifications: – Contactor IEC 400V – Contactor Type NO – Inductive Load: 40A – Resistive Load: 63A – DC Load: 30A, @ 24VDC – Power status indicator – Number of Poles 4 – Coil Volts: 110/120VAC, 50 Hz – Coil Load: Inrush 52VA, Sealed 10VA – IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW – Electric e strength: 4 kV – Operating Temperature: -40…+70 °C (-40…+158 °F) – 1 HP @ 1 Phase - 120V – 2 HP @ 1 Phase - 230V – 5 HP @ 3 Phase - 208V – 5 HP @ 3 Phase - 230V – 10HP @ 3 Phase - 480V – Weight: 0.88 lb (0.42 kg) – Width: 2.1" (54 mm) – Height: 3.3" (85 mm) – Depth: 2.6" (66 mm) – CE approved 61095, UL pending – Base or DIN 35mm mount Wiring: Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Compliance: CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b08lk773jy
Country:: US
ASIN:: B08LK773JY
UPC:: 850015671814
