RV Power Gear Slide Out Motor, Motorhome Replacement Gearbox Motor | in-wall Dual Shaft, 131:1 Gear Ratio, 12V DC, Replace# 523900 522967 523143 523983 521976 523529 524327 K01265B300 K01469B300 etc.

【OEM STANDARD】This RV Slide Out Motor is manufactured in accordance with OE specifications. Meet or exceed OEM standards and can be directly installed. The wires can be directly connected to the original connector; the motor spindle bolts and receptacle fit closely to ensure stable installation and use. 【REPLACEMENT NUMBER】Directly fit for 523900, 520819, 521976W, 521976, 522967, 523036, 523143, 523432, 523498, 523529, 523931, 523983, 524094, 524097, 524246, 524327, 524411, 13-1109, 13-1119, 13-1133, 130-1164, 130-1187, 130-1219, 130-1235, 130-1204c, K01265B300, K01265E300, K01265F300, K01285F300, K01469B300, K01531A300, 1510000006, etc. Please refer to your user manual before purchasing to ensure compatibility. 【UPGRADED QUALITY】This slide out motor can provide excellent performance and long service life. Cast aluminum gear housing and motor end cap with steel motor frame. 12V DC electro-mechanical brake on rear of motor with manual release lever. Better circuit connection and surface treatment process than most similar products. Replace the old slide-out motor and enjoy your travel time! 【EASY TO INSTALL】Our Slide Out Motor is the same size as the original parts, you can directly replace it yourself and finish it in 10 minutes! It saves you the time of changing back and forth, and also helps you save money. (Tips: The detailed replacement steps are in the description.) 【100% SATISFACTION SERVICE】If you have any questions or dissatisfaction, please email us and we will help you solve it perfectly - 36 Months Warranty & 24 Hours Service. 【NOTE】Some batches of motor rubber covers may be gray. This is simply a color change; the motor specifications and parameters remain unchanged. (The original factory-designed covers have different colors, representing different torques. We only change the color; the torque specifications remain unchanged.) Therefore, if you receive a gray cover, please do not worry about the torque difference.

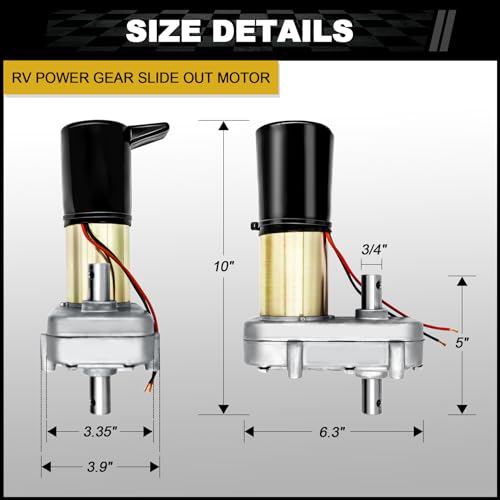

RV POWER GEAR SLIDE-OUT MOTOR

Product Specifications:

• Torque: 850 in-lbs

• Holding Torque: 500 in-lbs

• Speed: 9 RPM @ 850 in-lbs,17 Amps 12 RPM @ 400 in-lbs,9.5 Amps 14 RPM (no load)

• Reversibility: Rotation Reversible

• 131:1 Gear Ratio

• In-wall dual shaft

• Duty Intermittent

How to Replace？

• Make sure all power going to the motor is turned off
• Leave the slide open about 6 inches so that there's no pressure on the drive shaft that connects to each side of the motor

1. Disconnect the shaft to each other by taking off the bolts that fast the shafts to the motor (these square tubing shafts are telescopic so you can easily slide them out of the way).Take the other shaft on the other side of the motor and slide it out of the way.
2. Unplug the 12-volt wire harness then take off the 4 bolts holding the motor on the center plate and the motor will come off.
3. Check in the old and the new everything matches included in the wire harness plug so line up the new motor on the mounting plate and bolted back in with all 4 bolts and tighten down.
4. Reconnect the shaft if the bolt holes don't line up just reconnect the wire harness and have someone hit the slide switch till you can slide the bolt back hand as it lines up.
5. If both sides or one side is slightly off just get a pair of channel locks and turn it just enough so you can get the bolt back in.
6. Once the bolt is back in the shaft just tightens.
7. You can try the strap wire harness to the motor so it's out of the way from getting tangled on the shaft or accidentally hit it while moving something in and out of the cargo compartment.
8. Make sure it works properly by making the slight go in and out a few times.
