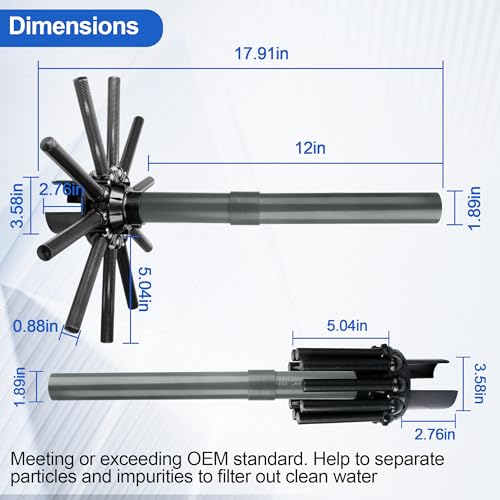

Rugam SX164DA Lateral Assembly with Center Pipe Compatible with Hayward Pro Series Sand Filter S140T S144T S164T S166T, Also Fit for Hayward Dyna-Skim&Auto-Skim Skimmer SP1091ES SP10852OM SP10841R — Open-Box, 40% Off

【Multi-Model Compatibility for Hayward】SX164DA pool filter parts designed for Hayward Pro Series S140T, S144T, S164T, S166T above-ground sand filter tanks, also fit for Hayward Dyna-Skim/Auto-Skim skimmer models SP1091ES, SP10852OM, SP10841R. Please check your equipment model before purchase for seamless integration with your existing high-rate sand filtration system 【Efficient Filtration】Multi-model pool filter replacement parts, the side arms lock securely in place to create a tight seal, ensures water evenly distributed, maximizes filtration efficiency by separating 5μm+ particles and impurities, preventing filter clogging and improving pool water clarity, extending the lifespan of Hayward filter system 【Easy Installation】Rugam pool sand filter lateral assembly features an umbrella-shaped folding design for effortless insertion and removal from the filter tank. No professional tools or technical skills required! Simply remove the old/broken center pipe, lock the new assembly in place, and refill with sand. Remember to cover the center tube during installation to prevent debris from entering 【Durable Construction】High-quality PVC pipe fittings impact-resistant, designed to withstand high-pressure water movement in pool filtration system, thread pool center pipe precision-threaded design withstand repeated backwash cycles without cracking or damage, keeps efficient water flow and maximum filtration capacity, meeting the requirements of daily use 【Warm Tip】Any brand name or model name is only used to prove compatibility. High-rate sand filter center pipe for top-mount sand filters only—not compatible with side-mount models. Remove all sand from the tank before installation to prevent lateral breakage. Every batch is pressure-tested to ensure stability under standard 50-60 PSI residential pool operating condition

SX164DA is designed exclusively for Hayward Pro-Series filters — specifically the S164T and S166T models. It will not work with other brands like Pentair, Sta-Rite, Intex, or other Hayward series

Compatibility

Hayward Pro Series Sand Filters: S140T, S144T, S164T, S166T

Also fits for Hayward Dyna-Skim & Auto-Skim Skimmer Models: SP1091ES, SP10852OM, SP10841R

Note: Confirm your filter model number before purchasing to ensure compatibility

Lateral assemblies have precise threading, diameter, and connection specifications that slot sizes and pivot designs are engineered for exact flow rates

If You Have a Different Brand:Check your filter's model number (usually on the tank or manual) and search for the correct lateral assembly for that brand (like Pentair, Sta-Rite, etc.)

If you can't find the model number, you can also measure your tank diameter or take a photo of the nameplate, and I can help identify it

Note: This assembly is made specifically for these Hayward models and is not designed for use with other brands

Center Pipe Connection

It is normal for the two pool sand filter center pipes to have the same connection diameter (with a slight sloping side), and the connection can be knocked down with a tool or by holding the connection point, and the tight connection can keep the pool filter water pipe working steadily in strong water flow

Enhanced Filtration Performance

This replacement center pipe kit ensures uniform water distribution through the sand bed, resolving issues such as cloudy pool water or sand returning through the inlet jets

The slotted hub architecture minimizes pump strain by optimizing water throughput

Step-by-Step Installation

1.Shut off pump and relieve tank pressure before opening

2.Remove the filter head and old pipe; vacuum out residual sand if needed

3.Seat the new hub on the stand-pipe base and unfold laterals to horizontal

4.Drop the assembly into the tank

5.Fill tank halfway with water before adding sand to cushion the lateral arms

6.Refit the valve head, tighten the clamp, then rinse → backwash → filter to purge dust

Key Design Feature: The laterals fold up like an umbrella, making them easy to insert and remove from the tank opening without special equipment

Prevention Tip: Always remove all sand from the tank before extracting the old assembly, and fill the tank 1/3 with water before adding new sand to cushion the lateral arms and prevent impact damage

Key Features

Umbrella-style fold design — Remove old center pipe, install new one in its original position. No special tools needed

Effective filtration — Dirty water passes through the filter layer, impurities are removed, and clean water returns to the pool via the lateral assembly

High-quality durable material — Excellent OEM-quality replacement, resistant to deformation and damage
