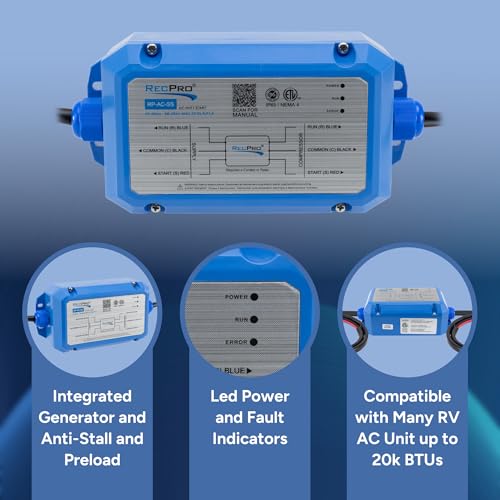

RecPro RV AC Soft Starter for 20K BTU Units Quiet Start IP65 Weatherproof — Open-Box, 15% Off

Less Startup Current - RecPro's RV Air-Conditioning Softstarter cuts the amount of starting current your AC unit requires by up to 75%. That means more energy savings for you! Protects Compressor - The built-in delay timer protects your AC compressor from stalling at low voltages and power reversal during short outages. Internal plus external wiring also keeps your compressor safe. Less Startup Noise - Our softstarter reduces startup noise from your AC unit, allowing you and your family to enjoy peace and quiet. Plus, no learning cycle is needed, so you can start using it right away! Easy to Install - This device is designed to be easy to install with only access to the compressor's run, start, and common wires required. So don't worry about complicated wiring or a long installation process.

The RecPro RV Air-Conditioning Softstarter is here to make your life easier and more comfortable. This device reduces startup noise, making those hot summer camping trips that much more peaceful. With its bright LED fault indicator lights, you can easily see the status of the power supply, so you can rest assured that your air conditioner is running safely and efficiently. It has an integrated generator anti-stall and preload feature for extra protection against drops in power or voltage spikes. The delay function limits the number of motor starts per hour, so your AC compressor won't burn out quickly. In addition, it comes with inline wiring through an IP65 / NEMA 4 weatherproof rated enclosure. Another great feature is the internal delay timer which protects against fast cycling when in fault conditions. Best of all, installation is a breeze: no learning cycles are needed—all that's required is access to the AC compressor’s Run, Start, and Common wires! Not only are these devices lead-free and easy to install, but they're also small, compact, and lightweight—making them ideal for RV use! Plus, they reduce startup current by up to 75%—saving you money in the long run! Finally, this device provides power reversal protection from short power outages and smoothly switches between inverter, generator, or campsite powers – giving you peace of mind knowing your air conditioner will keep cool regardless of where you camp. Get maximum comfort and convenience in one package with the RecPro RV Air-Conditioning Softstarter!

Features:

• Reduces startup noise
• Bright LED fault indicator lights
• Integrated generator anti-stall and preload
• Delay function limits the number of motor starts per hour
• Compatible with a wide range of RV AC units up to 20k BTU
• Inline wiring through IP65 / NEMA 4 weatherproof rated encloser
• Internal delay timer protects against fast cycling when in fault conditions
• Only requires access to the AC compressor’s Run, Start, and Common wires

Benefits:

• Lead-free
• Easy to install
• No learning cycles needed
• Small, compact, and lightweight
• Up to 75% less startup current for your AC
• Protects the compressor from stalling at low voltages
• Provides power reversal protection from short power outages
• Smoothly switches between inverter, generator, or campsite power

Specs:

• Nominal Voltage Rating: 120v AC
• Single/Three Phase: Single Phase
• Main Frequency (Tolerance +/-3 Hz): 60Hz
• Motor Current, Max RLA/FLA Range: 20A
• Contactor: Secondary
• LRA Max: 120A
• Start Current Reduction: Up to 75% of LRA
• Startup Torque Reduction: 30-40%
• Degree Of Protection: IP65 / NEMA 4
• Operating Temperature (°C / °F): -20° to 60°C / -4° to 140°F
• Storage Temperature (°C / °F): -40° to 85°C / -40° to 185°F
• Number Of Starts Per Hour: 15/hr
• Softstart On Thermal Reset: Yes
• Maximum High Voltage: 130v
• Power Supply & Control Voltage: Auto-Start at Power Up
• Short Circuit Current Rating SCCR, kA: 5
• Line Conductor, Max AWG Size: 12
• Overload Protection: ½ Second
• Low Voltage Protection: 3 Seconds

Includes:

• 1 Soft Starter Unit
• 6 Splice Connectors
• 1 Alcohol Wipe
• 1 Instruction Set

*This unit does NOT electrically isolate the control box from the compressor. A suitable contactor or relay is required.* *Functions as a soft starter only*
