Quanaoo Brake Cable 112-8818 for Toro Lawn-Boy 20in 22in Mulching/Rear Lawn Mower fit 10603 10604 10642 10646 20314 20316 20323 20330 20331 20338 20339 20371 by Quanaoo - Used condition

Quanaoo Brake Cable 112-8818 for Toro Lawn-Boy 20in 22in Mulching/Rear Lawn Mower fit 10603 10604 10642 10646 20314 20316 20323 20330 20331 20338 20339 20371

Brand: Quanaoo

Condition: Used
$1052
$1169
-11% Save $117
Updated: 5 hours 57 mins ago
Buy at Amazon.com

Description

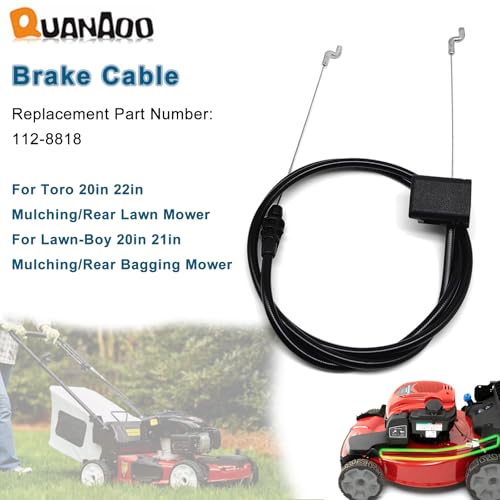

Package Includes: 1 x 112-8818 Brake Cable. SPEC: 50" Total Length; 37.5" Cable length. Built with standard Z-bend ends for a tight, secure connection to brake levers and bail arms, eliminating loose fits, misalignment or length mismatch issues. Replace Part Number: 112-8818 universal compatibility with 50+ Models. Compatible with Toro 20in & 50cm Mulching/Rear Walk-Behind Mower 20314, 20316, 20318, 20323, 29639, 29641, 29642, 29643. Toro 22in & 55cm Rear Walk-Behind 20330, 20330C, 20331, 20331C, 20338, 20339, 20339C, 20350, 20351, 20370, 20371, 20377, 20954. Compatible with: Lawn-Boy 20in Mulching/Rear Bagging Lawn Mower 10603, 10604, 10606, 10623, 10624, 10634, 10640, 10640C, 10641, 10641C, 10642, 10642C, 10643C, 10644C, 10645, 10646, 10647, 10648C, 10649C, 10650C. Lawn-Boy 21in Mulching/Rear Bagging Lawn Mower models:10732, 10734, 10738, 17732, 17734. Easy to Install: It should take you about 15 minutes to 30 minutes. Preparation tools: Phillips screwdriver, Wrench, Wire cutters, Pliers, Work gloves. You can refer our Product Description to replace the Toro lawn mover brake cable. High quality: Manufactured with the highest quality materials, especially the thickened high-density PVC outer skin and tensile-resistant stainless steel wire rope that withstands stretching and outdoor exposure. Ensure the safe and stable operation of the Lawn Mower by stoping the blade.

Installtion Guide

⚠Warning: befor replacement parts work, Make sure the engine is cool, disconnect the spark plug boot/wire. If you need to put the mower down sideways, you drain the gas tank.

Preparation tools: Phillips screwdriver, Wrench, Wire cutters, Pliers, Work gloves.

●step 1: Note the position of the traction control cable then remove the nut and washer and slide the brake cable support off of the bolt. Unhook the z-end of the traction cable from the control bail arm and detach the cable from the support.

●step 2: Release the z-end of the brake cable from the brake bail arm.

●step 3: Use a needle-nose pliers depress the plastic tabs on either side of the cable’s locking mechanism release the old brake cable from the bracket and detach the opposite z-end from the brake lever.

●step 4: Install the new brake cable by first sliding it through the cable guide. Insert the z-end into the brake lever and snap the cable into the bracket and the opposite z-end into the brake bail arm.

●step 5: Insert the traction cable in the brake cable support and attach the z-end to the control bail arm. Slide the support onto the bolt replace the washer then thread the nut on.

●step 6: Adjust position the traction control cable and tighten the nut to secure.

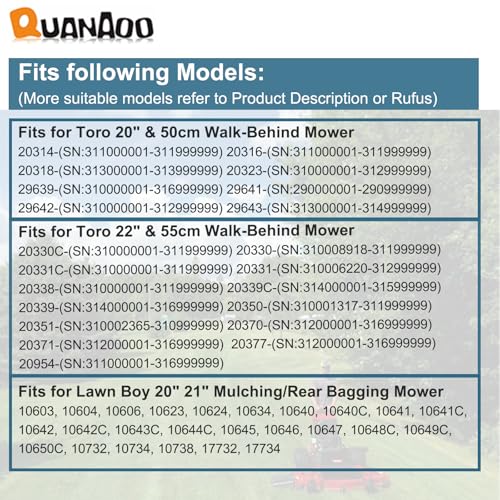

Toro 20" & 50cm Walk-Behind Mower

20314 -(SN:311000001-311999999) (2011) 20316 -(SN:311000001-311999999) (2011)

20318 -(SN:313000001-313999999) (2013) 20323 -(SN:310000001-310999999) (2010)

20323 -(SN:311000001-311999999) (2011) 20323 -(SN:312000001-312999999) (2012)

29639 -(SN:310000001-316999999)  29641 -(SN:290000001-290999999) (2009)

29642 -(SN:310000001-312999999) 29643 -(SN:313000001-314999999)

Toro 22" & 55cm Walk-Behind Mower

20330C -(SN:310000001-310999999) (2010) 20330C -(SN:311000001-311999999) (2011)

20330 -(SN:310008918-310999999) (2010)  20330 -(SN:311000001-311999999) (2011)

20331C -(SN:310000001-310999999) (2010) 20331C -(SN:311000001-311999999) (2011)

20331 -(SN:310006220-310999999) (2010) 20331 -(SN:311000001-311999999) (2011)

20331 -(SN:312000001-312999999) (2012) 20338 -(SN:310000001-310999999) (2010)

20338 -(SN:311000001-311999999) (2011) 20339C -(SN:314000001-314999999) (2014)

20339C -(SN:315000001-315999999) (2015) 20339 -(SN:314000001-314999999) (2014)

20339 -(SN:315000001-315999999) (2015) 20339 -(SN:316000001-316999999) (2016)

20350 -(SN:310001317-310999999) (2010) 20350 -(SN:311000001-311999999) (2011)

20351 -(SN:310002365-310999999) (2010) 20370 -(SN:312000001-316999999)

20371 -(SN:312000001-316999999)  20377 -(SN:312000001-316999999)

20954 -(SN:311000001-316999999)

Lawn Boy 20" Mulching/Rear Bagging Lawn Mower

10603 -(SN:311000001-311999999) (2011) 10603 -(SN:312000001-312999999) (2012)

10604 -(SN:311000001-311999999) (2011) 10604 -(SN:312000001-312999999) (2012)

10606 -(SN:311000001-311999999) (2011) 10606 -(SN:312000001-312999999) (2012)

10623 -(SN:311000001-311999999) (2011) 10623 -(SN:312000001-312999999) (2012)

10624 -(SN:311000001-311999999) (2011) 10624 -(SN:312000001-312999999) (2012)

10634 -(SN:313000001-313999999) (2013) 10634 -(SN:314000001-314999999) (2014)

10640C -(SN:290000001-290999999) (2009) 10640C -(SN:310000001-310999999) (2010)

10640 -(SN:290000001-290999999) (2009) 10640 -(SN:310000001-310999999) (2010)

10641C -(SN:290000001-290999999) (2009) 10641C -(SN:310000001-310999999) (2010)

10641 -(SN:290000001-290999999) (2009) 10641 -(SN:310000001-310999999) (2010)

10642C -(SN:290000001-290999999) (2009) 10642C -(SN:310000001-310999999) (2010)

10642 -(SN:290000001-290999999) (2009) 10642 -(SN:310000001-310999999) (2010)

10643C -(SN:290000001-290999999) (2009)

10644C -(SN:290000001-290999999) 10644C -(SN:310000001-310999999)

10645 -(SN:290000001-290999999) 10645 -(SN:310000001-310999999)

10646 -(SN:290000001-290999999) 10646 -(SN:310000001-310999999)

10647 -(SN:290000001-290999999) 10647 -(SN:310000001-310999999)

10648C -(SN:310000001-310999999) (2010) 10649C -(SN:310000001-310999999) (2010)

Lawn-Boy 21" Walk-Behind Mower

10732 -(SN:314000001-315999999) 10734 -(SN:314000001-316999999)

10738 -(SN:314000001-315999999) 17732 -(SN:314000001-999999999)

17734 -(SN:314000001-999999999)
