Proxicast X-Boom MIMO Antenna Mast Cross-Over Bracket Kit for 1.25" to 2.0" OD Pipes - Includes Heavy Duty Right-Angle Plate & Mounting Hardware (ANT-800-XB1) — Open-Box, 5% Off

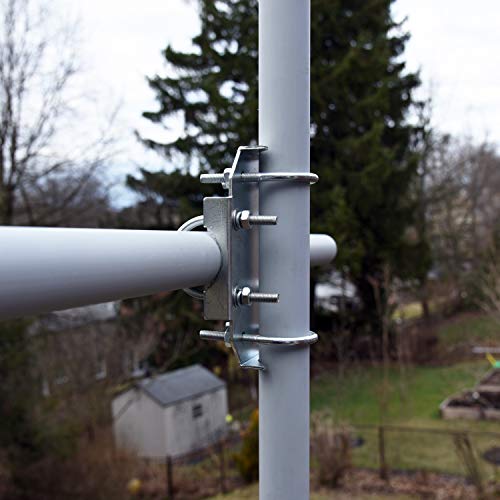

Mount 2 Antenna Mast Poles at a 90 Degree Angle (Cross or T shape) Install Additional Antennas on Existing Towers, Masts or Railings with Crossover Clamp Mount Multiple Antennas (MIMO) Horizontally at the same Vertical Height to Achieve Physical Separation & Spatial Diversity Add Weather Stations, Lights, Security Cameras or Solar Panels to Outdoor Flag Poles or Posts Accepts Round or Square Poles from 1.25 to 2 inches in Diameter Proxicast's professional grade X-BOOM antenna mast crossover bracket kit allows you to mount a horizontal pole to a vertical mast or to add a vertical mast to an existing horizontal railing. The bracket securely mates the poles at a 90 degree right angle.

This bracket is designed to support most 4G/LTE, 5G, WiFi, Television, Direct TV, Dish Network and 900 MHz ISM antennas.

Uses include:

• Mounting 2 4G/LTE omni-directional antennas for MIMO spatial diversity
• Attaching a vertical mast to a railing on boat, parapet or balcony
• Installing antennas on water tower "painter rings"
• Back-to-back mounting of yagi & directional antennas
• Expanding the capacity of existing antenna towers

The X-BOOM's one piece construction with V-notched pole guides simplifies installation, securely clamps the poles into place and reduces vibration. The plate's size and hole placement design makes it easy to access the U-Bolts even when both poles are in place.

All components are pre-galvanized for corrosion protection and reliability even in extreme environments. The extra thick plate will not bend or deform under normal conditions.

Each kit includes one (1) plate and four (4) U-Bolt assemblies.

• Plate Dimensions: 4.8 x 6.9 in (122 x 176 mm)

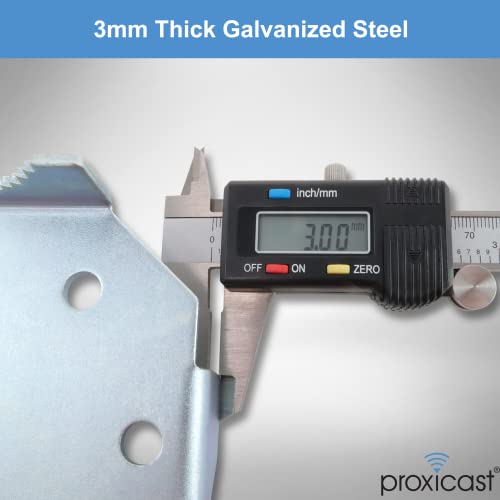

• Plate Thickness: 11 gauge (0.12 in / 3 mm)
• Minimum Tubing Size: 1.25 in (32 mm) OD
• Maximum Tubing Size: 2.00 in (53 mm) OD
• U-Bolts: 4 pieces
• Washers, Lock Washers, Nuts: 8 pieces each (M8 size)
• Material (all): Hot Dip Galvanized Steel

Antenna masts are not included.

Since 2000, USA-based Proxicast has been manufacturing innovative professional grade wireless equipment.
