Proxicast Vandal Resistant 2x2 MIMO Low Profile 4G/5G Omni-Directional Screw Mount Antenna - 10 ft Coax Leads - for Cisco, Cradlepoint, Digi, Pepwave, Sierra Wireless and Others (ANT-121-M22) — Open-Box, 20% Off

LOW PROFILE ~ 3 inches Tall with 3-4 dBi Gain -- Omni-directional MIMO -- Indoor/Outdoor Use 2 SMA MALE CONNECTORS on 10 ft Coax Leads / Vandal Resistant Materials & Design 2 IDENTICAL ISOLATED OMNIDIRECTIONAL ANTENNA ELEMENTS Cover all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) in a Compact Enclosure WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as ATT, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others COMPATIBLE WITH 2X2 MIMO Routers & Modems from Cisco, Cradlepoint, Digi, MoFi, Peplink, Robustel, Telktonika, KuWFi, Yeacomm, InHand, Linovision and others. Some models may require connection adapters. For outdoor/indoor applications. Excellent for hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing MIMO-capable cellular modems, routers or other 3G 4G LTE 5G enabled devices which have 2 SMA external antenna connectors.

This low profile (~ 3 inches tall) fixed mount omni-directional antenna provides 3 to 4 dBi of gain and supports all cellular frequency bands for ATT, Verizon, T-Mobile, Bell, Rogers, Telus and other worldwide carriers.

Permanently mounts via a 1/2 in. (13 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded mounting post. Includes 10 ft of low-loss paired RG174 coax fed through center mounting post. Includes "L" bracket for optional wall mounting.

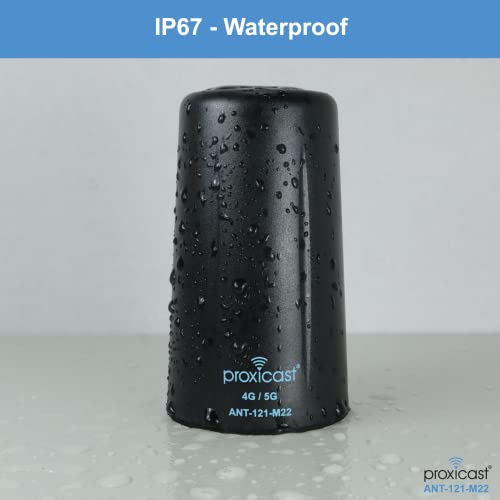

Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67).

Integrated SMA male plug connectors mate with SMA female jacks found on most cellular modems and routers.

* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.

Specifications

Frequency Range: 600-6000 MHz
Impedance: 50 ohm
VSWR: < 2.0:1
Gain: 3-4 dBi
Radiation: Omni
Polarization: Vertical
Connector: SMA plug (male)
Material: UV stabilized ABS plastic (black)
Connector: Brass with Nickel plating
Cable Length: 10 ft (3m) low-loss RG174 coax
Height: 3.2 in (82 mm)
Diameter: 1.9 in (48 mm)
Weight: 6.2 oz (176 g)
Op. Temp.: -40C to +80 C

The SISO version of this antenna is part # ANT-121-002 (ASIN B01E36Y7EG)
