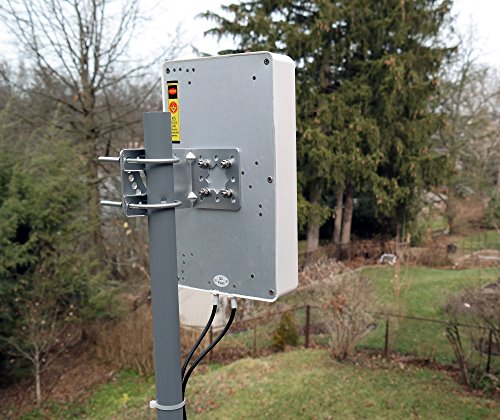

Proxicast 4G / LTE / 5G Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed-Mount Outdoor Directional Panel Antenna (ANT-129-001) — Open-Box, 20% Off

IMPROVES SIGNAL STRENGTH and SPEED on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and all 4G LTE & 5G Sub-6 Cellular Broadband Bands Worldwide (600-960/1710-6000 MHz) COMPATIBLE WITH MIMO Capable Routers, Modems And Gateways from CalAmp, Cisco, Cradlepoint, Digi, InSeeGo, MoFi, Netgear, Pepwave, Proxicast, Sierra, ZTE and many others 7-10 dBi GAIN - Dual Polarized 75 Degree Directional Beamwidth MIMO Design Increases Signal Strength and Data Speeds for Remote Sites with Poor Cellular Signal Coverage SUPPORTS T-MOBILE 5G BAND 71 & New 3 GHz Mid-Band (C-Band) AT&T and Verizon 5G Frequencies 2X FEMALE N CONNECTORS with 12" pigtail *** REQUIRES 2 COAX EXTENSION CABLES *** USE 2 PANELS (1 Mounted Vertically and 1 Mounted at 45 Degrees) to Create a 4x4 MIMO 5G Antenna Proxicast's dual polarized directional 4G, 5G, LTE MIMO antenna is ideal for signal enhancement in virtually any cellular application.

It is compatible with 4G/5G data services from Verizon, AT&T, T-Mobile, Bell Mobility, Rogers, Telus and most other cellular operators worldwide.

Two separately fed ultra wideband elements in a single housing focus radio energy enabling connection to distant cell towers. Cross-polarized elements enable multiple input / multiple output (MIMO) connectivity for LTE resulting in higher performance.

With appropriate adapter cables (not included), this antenna is compatible with cellular modems, hotspots and routers from Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and others.

The compact, light-weight rugged housing, heavy duty mounting hardware and corrosion-resistant materials are ideal for outdoor applications.

Electrical
• Frequency: 600-960/1710-6000MHz
• Impedance: 50 Ohm
• Gain: 7 / 10 dBi freq. dependent
• Beam Width: Hz. 70/75 deg, Vrt. 75/60 deg
• Polarization: Vertical + Horizontal
• VSWR: < 1.8:1

Mechanical
• Connector: 2x N Female on 12 in RG58U pigtail
• Dimensions: 11.8 x 7.2 x 2.75 in
• Weight: 1.4 lb

**IMPORTANT
This antenna is for direct wired connection to cellular data devices with 2 antenna connectors

Includes Proxicast’s 12 month Warranty & US-based Technical Support.

DON’T
• Use RG59/RG6 coax (75 Ohm TV cable from the hardware store)
• Use a Y-splitter to connect 1 modem port to both antenna leads
• Focus on signal “strength” (RSSI or bars); optimize signal “quality” (SINR, RSRQ) instead

DO
• Ask provider if your tower is MIMO-enabled
• Use 50 Ohm coax cables. See part# ANT-140-020
• Keep cables as short as possible
• Weatherseal outdoor connections. Use Silicone Tape part# ANT-900-002
