Pacific Arc Drafting Triangle, 10-inch, 30/60/90 Degrees, Fluorescent Orange — Open-Box, 57% Off

DRAFTING TRIANGLE FOR PRECISE ANGLES - A cast acrylic set square that gives architects, engineers, drafters and students clean, repeatable lines and accurate corners on every drawing, plan and layout.

CHOOSE YOUR ANGLE AND LENGTH - Available as a 45/90 degree or 30/60/90 degree triangle in sizes from 4 to 24 inches, so you can match the drafting square to the scale of the drawing you are working on.

CLEAR SIGHT LINES IN THREE FINISHES - Offered in clear, fluorescent orange and topaz acrylic. The transparent body lets you see the drawing underneath while you draw, trim, mark or square up your work.

BUILT FOR REPEAT USE - Dense acrylic with a smooth, plain edge holds its shape and its accuracy through daily use in the studio, the classroom, the shop and the sewing room. The triangle is non-graduated.

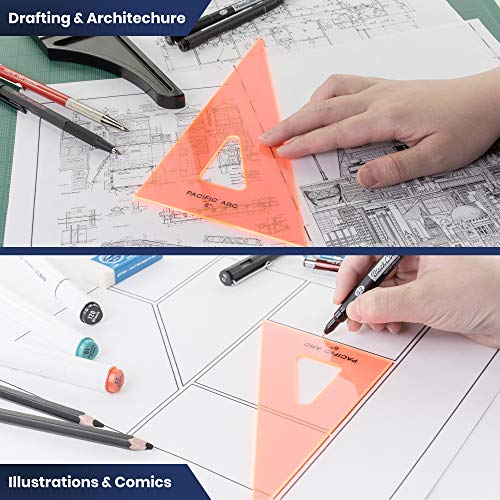

MORE THAN A DRAFTING TOOL - Works as a quilting template, sewing ruler, woodworking square, art and craft template and a math or geometry classroom triangle. A practical gift for an architect, engineer or design student.

Pacific Arc drafting triangles are cast acrylic set squares built for accurate technical drawing. Each triangle holds true corners and straight, plain edges, so the lines you draw stay consistent from the first sheet to the last. The range covers both standard angle sets. The 45/90 degree triangle handles squares, diagonals and mitered layouts. The 30/60/90 degree triangle handles isometric work, hex layouts and stair or roof pitches. Lengths run from 4 inches for detail work up to 24 inches for full sheet layouts, and the triangles are available in clear, fluorescent orange and topaz acrylic. Orange and topaz make the tool easy to spot on a crowded desk; clear keeps the drawing fully visible underneath. These triangles are non-graduated, so there is no printed scale to distract from the drawing or wear off with use. Pair one with a T-square, parallel bar or drafting board to draw verticals and angled lines against a fixed horizontal. Architects, engineers, drafters, interior designers and industrial design students use Pacific Arc triangles for plans, elevations and sections. Outside the drafting room, the same tool works as a quilting and sewing template, a woodworking and metal layout square, a template for art and craft projects, and a geometry triangle for math and STEM classrooms. Pacific Arc has supplied drafting and measuring tools to professionals and schools for decades. Select your angle set, length and color from the options above.
