P PBAUTOS 1HP R1234YF R32 Refrigerant Recovery Machine, Oil-Less Dual Cylinder Portable Freon Recycling Unit 110V-120V for Automotive AC & Household HVAC Systems

High-efficient Recovery: The refrigerant recovery machine is equipped with a 110V-120V 60 Hz dual-cylinder oil-less compressor, it has a more powerful recovery speed of 1 HP, which can recover vapor and liquid refrigerants more quickly than the one with single cylinder Overload & Safety Protection: The refrigerant recycling machine comes with a built-in intake pressure gauge (blue) and a discharge pressure gauge (red), which have clear scale for easy observation at any time. When the internal pressure is above 558 psi, it will shut down automatically for safe operation guarantee. Inversely, the machine will reset automatically. The unit is installed with an overload protector, if popping, the breaker switch will reposition after 5 minutes Self-purge Function: The refrigerant recovery unit has a purge switch, which can help clean up the residual refrigerants in the recovery kit and avoid it from damages caused by the residual refrigerants inside. The filter drier comes with the machine can remove moisture and liquid substance in the air, the filter is replaceable Overall Structure:The refrigerant recovery machine mainly includes a 110 V-120 V 60 Hz dual cylinder, 1 HP powerful motor and oil-less compressor. The sturdy body and good-quality components ensure the long service life, and the compact design with ergonomic handle makes the machine easy to transport and carry. The big condenser and fan with upgraded cross-flow layout design ensure the superior cooling performance, shorter cycle time and faster recovery speed Wide Application: The freon recycling unit not only fits for all kinds of Category III, IV, V refrigerants, such as R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A, R507, but also fits for special refrigerants, such as R1234YF and R32. The machine is widely applied in automotive, household and commercial apliances, like air conditioner, freezer, heat pump unit, etc

FEATURES:

1. Automatic shut-off switch and reliable overload protection for safe operation

2. Multiple refrigerants matching for wide applications

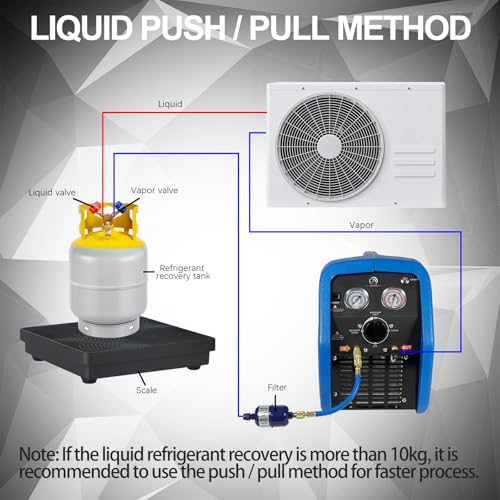

3. Excellent recovery and push/pull method for high-efficient performance

4. Superior self-purge technology for longer service life

5. Durable oil-less compressor and compact design for easy carrying

6. Perfect for explosive, flammable or corrosive refrigerants, such as R1234YF, R32

SPECIFICATIONS:

1. Refrigerants: Category III: R32, R12, R134a, R401C, R406A, R500

Category IV: R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R1234YF

Category V: R402A, R404A, R407A, R407B, R410A, R507

2. Power: 110V-120V, 60Hz (Dual cylinder)

3. Motor: 1HP, 1750RPM

4. Maximal current draw: 7A

5. Compressor: oil-less, air-cooled, piston

6. High pressure shut-off: 38.5bar / 3850kPa (558psi)

7. Operating temperature: 0℃~40℃ / 32℉~104℉

8. Dimension: 400mm*250mm*360mm

9. Weight: 15KG

10. Recovery rate (kg/min): Category III: 0.2 (vapor), 1.6 (liquid), 4.6 (push / pull)

Category IV: 0.25 (vapor), 1.8 (liquid), 5.6 (push / pull)

Category V: 0.25 (vapor), 2.2 (liquid), 6.3 (push / pull)

WARNING

1. Read all safety instructions carefully before use.

2. Only qualified technicians could operate this recovery unit.

3. Always wear safety goggles and protective gloves during the work. Avoid gas or liquid refrigerant.

4. Do not overfill the recovery tank. A scale is needed to avoid overfilling the recovery tank. The tank is full at 80% capacity.

5. The inlet pressure must not exceed 26bar.
