MYFULLY 12V Linear Actuator | 10" Stroke 202lbs/900N Load Heavy Duty Electric Actuator with Mounting Brackets for Solar Tracker, RV, Recliner, TV Lift, Auto Door Opener (10"/250MM Stroke Length)
Brand: MYFULLY
Condition: Used
$2588
$3099
-17% Save $511
Updated: 4 days ago
Description

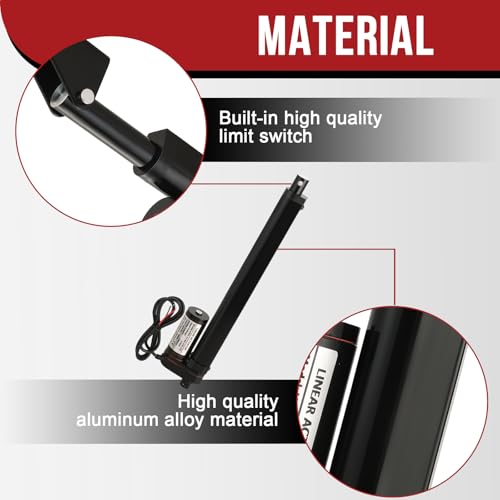

Durable & High-Performance: Constructed with a sturdy aluminum alloy housing and equipped with a high-performance motor, this 12V linear actuator is built to last. IP54 waterproof and dustproof rating makes it perfect for outdoor applications like solar tracking and RV automation.
Linear Actuator Specification: Travel speed = 0.39 inches/sec (10 mm/s); Input Voltage: 12V DC. Rated power: 20W, maximum 30W; Stroke length = 250mm(10"); Retracted length = 370mm(14.8"); Extended Length=620mm(24.8“); Maximum current consumption: 3A; Maximum Load = 202lbs(900N)
Safe & Smooth Operation: Features built-in limit switches for automatic stop at full extension or retraction, protecting the motor and extending lifespan. Operates quietly under 50 dB, with self-locking and multi-layer protection against overcurrent, overload, and short circuit.
Easy Mounting with Included Brackets: Comes with durable mounting brackets designed for simple installation of your 12V electric linear actuator on boats, RVs, and home automation setups.
Wide Application: This linear actuator is ideal for use in solar tracking systems, RV slide-outs, TV lifts, recliner lifts, and automatic door openers. Perfect for automation, lifting, pushing, and pulling tasks.
Specification:
Color: Black
Material: Aluminum Alloy
Input Voltage: DC 12V
Rated Current: 3Amp
Stroke length = 250mm(10")
Retracted length = 370m(14.8");
Extended Length= 620mm(24.8")
Rated Load: 900N
Travel Speed: 10mm/s
Limit Switch: Built-in
Working Temperature: -20ºC to 65ºC
Protection Class: IP54
Duty Circle: 25%
Noise Level: <50dB
How To Install :
1. Prepare to connect the two wires of the actuator to a 12 volt battery
2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch
4. Your linear actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The 12 Volt Stroke Linear Actuator has pre-installed inner limit switch, it cannot be adjustable.
6. The Linear Actuator Motor comes with mounting brackets.
How to protect your stroke linear actuator :
1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 10%. It means that your actuator needs 18 minutes to rest for every 2 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof
Package Included:
1 X 10" Linear Actuator
2 X Mounting Bracket
Specification:
Color: Black
Material: Aluminum Alloy
Input Voltage: DC 12V
Rated Current: 3Amp
Stroke length = 250mm(10")
Retracted length = 370m(14.8");
Extended Length= 620mm(24.8")
Rated Load: 900N
Travel Speed: 10mm/s
Limit Switch: Built-in
Working Temperature: -20ºC to 65ºC
Protection Class: IP54
Duty Circle: 25%
Noise Level: <50dB
How To Install :
1. Prepare to connect the two wires of the actuator to a 12 volt battery
2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch
4. Your linear actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The 12 Volt Stroke Linear Actuator has pre-installed inner limit switch, it cannot be adjustable.
6. The Linear Actuator Motor comes with mounting brackets.
How to protect your stroke linear actuator :
1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 10%. It means that your actuator needs 18 minutes to rest for every 2 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof
Package Included:
1 X 10" Linear Actuator
2 X Mounting Bracket
