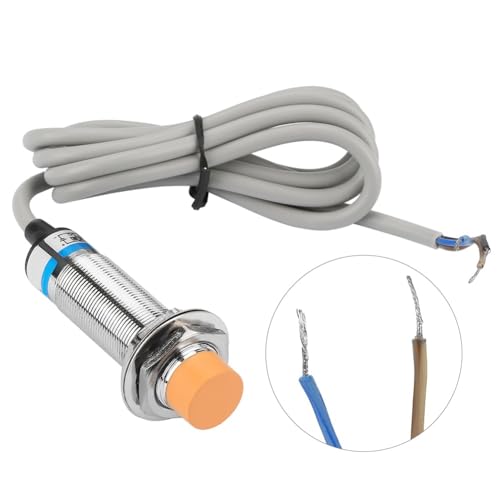

MOPFOL LJ18A3-8-Z/BX Inductive Proximity Sensor 8mm Detection Distance - DC NPN 3-Wire Normally Open for Industrial Automation Control, 12-24V — Open-Box, 29% Off

8mm Detection Range: Our inductive proximity sensor offers an 8mm detection distance, the sensor demonstrates high sensitivity to magnetic metals, with reduced detection range for non-magnetic metals, suitable for precise non-touch object detection in automated systems Non-Touch Operates: This NPN proximity sensor no need physical touch with target objects to avoid wear and damage while ensuring reliable performance DC NPN Configuration: Compatible with 12-24V DC systems and features normally open NPN wiring for seamless integration into control circuits Fast Response Time: Delivers 0.5kHz response frequency for real-time detection in high-speed automation applications, ideal for mechanical automation, machine tools, assembly lines and other fields Complete Package: Includes 1pcs LJ18A3-8-Z/BX 0.65x2.68in inductive proximity sensor with M18 threading for immediate installation in industrial environments

8mm inductive proximity sensor switch provides non-touch detection for automated systems. This DC NPN 3-wire normally open sensor detects metallic objects within 8mm(0.31in) range, ideal for position sensing and equipment protection in industrial applications

Operating without physical touch, this motion detector device avoid mechanical wear and extends service life. When a metal target enters the detection zone, the sensor instantly sends a control signal to your system. The LJ18A3-8-Z/BX model offers reliable performance in manufacturing, conveyor systems, and automated machinery

For optimal performance, install the sensor with 0-7mm(0.00-0.28in) setting distance from target. The sensor demonstrates high sensitivity to magnetic metals, with reduced detection range for non-magnetic metals

Specification:

Model: LJ18A3-8-Z/BX

Detection distance: 8mm(0.31in)±10%

Setting distance: 0-7mm(0.00-0.28in)

Delay distance: <10% of detection distance

Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal)

Standard detection object: Iron 30*30*1mm(1.18*1.18*0.04in)

Response frequency: 0.5kHz

Supply voltage: DC12-24V (6-36V) impulse (P-P) below 10%

Withstand voltage: AC1000V 50/60Hz 1min

Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA

Control output: N.P type: <300mA, D type: <200mA, A type: <400mA

Ambient temperature and humidity: -30~65℃, 35-95%RH

Temperature influence: Temperature range -30~65℃, at 23℃,±15% detection distance; Temperature range -25~60℃, at 23℃,±10% 0detection distance

Insulation impedance: >50Mohm

Housing material: Ni plated brass

Detection surface: ABS

Weight: Approx. 80g/2.8oz

Size: 16.5*68mm(0.65*2.68in)

Thread Specification: M18

Color: Silver

Package list:

1 x Inductive Proximity Switch
