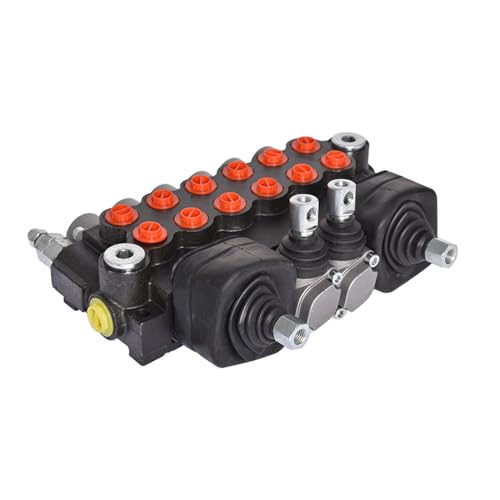

mitoharet 6 Spool Hydraulic Backhoe Directional Control Valve with 2 Joysticks 11 GPM for Tractor Loader Motors Spool Double Acting SEA Ports — Open-Box, 19% Off
Brand: mitoharet
Condition: Used - VeryGood
$10744
$13324
-19% Save $2580
Updated: 40 days ago
Description
Double Acting - Our hydraulic control valve is made for operating double-acting cylinders
Quality- This hydraulic directional control valve comes with 6 spool and 10 SAE O-ring in/out ports, with cast iron construction for long-time use
High Performance - This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM
Widely Used- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc
Package Includes - Parts as shown
6 Spool Hydraulic Monoblock Double Acting Control Valve
Specification:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Preset Pressure Relief: 2610 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: 8 SAE O-Ring (3/4"-16) Thread
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 10 SAE O-Ring (7/8"-14) Thread
N Port: 8 (1/2-14) G Thread (British Pipe Thread Parallel)
2 - 5/16" Mounting Holes
Feature:
- 6 Spool valve with compact design allows for installations in tight areas
- All spools are standard double acting with spring return to neutral position which are great for double acting cylinders
- Used for open center systems (Pump to Tank Flow) - closed center option available
- Anti-drop load checks on each spool
- Precision ground and hard chrome-plated spools assure a long life
- High-tensile strength cast iron monoblock construction
- SAE O-Ring ports ensure solid seal and prevent blockages
- Capable of Closed Center or Power Beyond (conversion plug required)
- Vertical or horizontal handle mount
- Adjustable Relief Valve Range: 1500 to 3625 PSI
- Used as motor or single-acting spool possible (10 SAE port plug required)
Package includes:
1 x Hydraulic Directional Control Valve
Specification:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Preset Pressure Relief: 2610 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: 8 SAE O-Ring (3/4"-16) Thread
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 10 SAE O-Ring (7/8"-14) Thread
N Port: 8 (1/2-14) G Thread (British Pipe Thread Parallel)
2 - 5/16" Mounting Holes
Feature:
- 6 Spool valve with compact design allows for installations in tight areas
- All spools are standard double acting with spring return to neutral position which are great for double acting cylinders
- Used for open center systems (Pump to Tank Flow) - closed center option available
- Anti-drop load checks on each spool
- Precision ground and hard chrome-plated spools assure a long life
- High-tensile strength cast iron monoblock construction
- SAE O-Ring ports ensure solid seal and prevent blockages
- Capable of Closed Center or Power Beyond (conversion plug required)
- Vertical or horizontal handle mount
- Adjustable Relief Valve Range: 1500 to 3625 PSI
- Used as motor or single-acting spool possible (10 SAE port plug required)
Package includes:
1 x Hydraulic Directional Control Valve
