MEASUREMAN 304 Stainless Steel Case, Contractor Pressure Gauge, 0-200Psi, 4-1/2" Dial Size, +/-1% Accuracy, 1/4" NPT Lower Mount — Open-Box, 22% Off

Wide Range & Precise Reading: The 4.5-inch dial is paired with a 0-200PSI wide range, which can meet the pressure detection needs under high-pressure working conditions. With 1.0% full-scale high precision, the reading accuracy does not change with the pressure range, making it suitable for high-pressure monitoring scenarios such as industrial equipment and hydraulic systems. Durable Copper Fitting: Adopts a 1/4 NPT radial lead-free copper fitting, which complies with environmental standards, and has corrosion resistance and aging resistance. It is compatible with most industrial pipelines and has strong sealing performance after connection with pipelines. Overload Protection: The fan-shaped adjustable aluminum pointer is matched with a stop pin. It can not only flexibly calibrate the pointer position according to needs but also prevent damage caused by excessive pointer deflection due to pressure overload, extending the service life of the instrument. Durable Components: Built-in copper bourdon tube as the core of pressure sensing, with excellent material toughness. It can withstand frequent pressure fluctuations and ensure stable measurement during long-term use. Stainless Steel Construction: The 304 polished stainless steel case is rust and scratch resistant; the flat polycarbonate dial cover is impact resistant and has strong light transmittance; the back of the case is fastened with stainless steel screws, ensuring a firm overall structure. Description
"This 4-1/2"" dial size gauge is designed for contractors, which is used for measuring of the water and air pressure in the Heating, Cooling, Ventilation and Cooling Industries. It is also available for drinking water system.
The 4-1/2"" large dial size, is easy to see from distance.
Process connection: 1/4""NPT male lower mount
This gauge is made with Lead Free wetted parts according to California AB 1953 standard and 2014 US Safe Drinking Water Act. Lead Free brass connection, Lead Free bourdon tube, Lead Free solder.
Case: 304 stainless steel case and bezel ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop

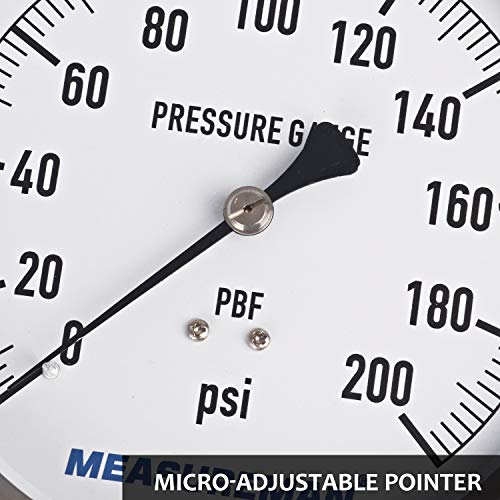

Pointer: Aluminum, black, DIN style, adjustable
Boudon tube: Copper alloy
Movement: Brass
Connection: Brass, PBF marked
IP class: IP43
Accuracy:+/-1%,
Pressure range: 0-200psi single scale
Working temperature:-40 to 140 deg F/-40 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum



Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
