Mcbazel ODV-GBS-C RGBS/SCART/YPbPr/VGA to HDMI/VGA Scan Converter for Retro Gaming Console with US Plug - NO AV/Composite/RCA | VGA Max 60Hz — Open-Box, 10% Off

PLEASE READ BEFORE PURCHASING — Supported Input Interfaces: This converter accepts ONLY these 4 input types: RGBS/SCART | YPbPr Component | VGA (≤60Hz) | RGBHV. NOT SUPPORTED: AV Composite / RCA / S-Video / HDMI Input. VGA input does NOT support refresh rates above 60Hz (e.g., 70Hz DOS/PC BIOS modes are not compatible) Designed for classic retro gaming consoles. Converts YPbPr component and RGB signals to HDMI and VGA output for modern TVs and displays. Addresses common limitations found in converters such as OSSC. IMPORTANT: N64 / GameCube: This product alone does NOT support these consoles. You must also purchase the Mcbazel ODV-II Converter (ASIN: B0B2WFTDGF). Lag-Free Signal Processing & Supported Resolutions: Supports 240p, 480i, 480p input signal processing with no input lag Dynamic de-interlacing for 480i → progressive output Scanline effect: creates authentic CRT scanline appearance (configuration required — see user manual) Can output 480p/480i signals scaled to 240p resolution 15kHz output via VGA is supported but must be manually enabled in the settings menu — NOT active by default Supported VGA output resolutions include: 640x480, 800x600, 1024x768, 1280x1024 and more (see user manual for full list). VGA input: supports standard resolutions at 60Hz or below. Non-standard BIOS modes and 70Hz+ refresh rates are NOT supported. Does NOT support AV Composite, RCA, or S-Video input. Dedicated Audio I/O & RGB Color Calibration Knobs: Separate 3.5mm audio input and output — connect to earphones, speakers, or audio devices Three independent R/G/B adjustment knobs for fine-tuning red, green, and blue color output IMPORTANT — RGB Knob Compatibility: The R/G/B knobs are ONLY active when using RGBS or RGBHV input signals. If you are using YPbPr (Component) input, the RGB knobs will have NO effect — this is normal and expected behavior, not a defect. LED Display, WiFi Control & Firmware: LED display with front-panel control buttons for on-device settings WiFi control: configure wirelessly from PC or smartphone Powered by DC 12V / 1A adapter (US plug included) Firmware upgradable via USB to PC (see user manual for firmware update steps) Green Synchronous Switch — RGsB Signal Users Only: This device features a green synchronous switch designed specifically for RGsB signal in 480P format. IMPORTANT: Enable this switch ONLY when your input source outputs RGsB 480P signal For ALL other input types (RGBS/SCART, YPbPr, VGA, RGBHV standard), this switch MUST remain OFF Enabling this switch with non-RGsB sources will cause the signal to be unrecognized — you will see no image If you suddenly lose image after touching a switch on the device, check the green sync switch and turn it OFF. Consoles directly compatible (no ODV-II needed): PlayStation 1 / 2 / 3 | Sega Saturn | Sega Dreamcast | Super Nintendo (SNES) | Neo Geo | and other consoles with native RGBS/SCART/YPbPr/VGA output. For full console compatibility list and connection guides, please refer to the included user manual. Color Display Issues? Green tint / color shift: Check your settings menu — ensure the signal type selected matches your actual input connection (e.g., do not select RGB when connected via YPbPr) Black & white image: This product does not support AV input — verify your source is not an AV/Composite signal Description:
-Feature separate audio input and output. You may connect it to earphones or other audio devices.
-Utilizing the additional R/G/B knobs on the converter, user can further fine-tune the output color degree of red, green and blue respectively to meet their needs.
-With LED display and control button for setting. Easy to control. You can modify setting directly from your computer or mobile phone via WiFi connection (details refer to manual).
-Powered via DC 12V/1A. Firmware upgradable via computer.

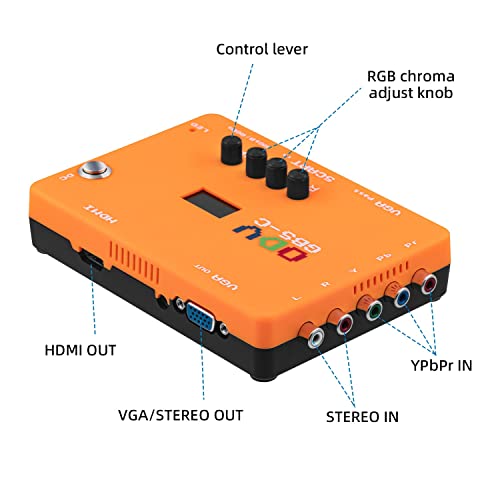

Specifications:
-Input Interface: RGBS SCART (broom head input), component YPbPr, VGA/RGBHV, stereo audio
-Input Format: support all common host analog signal input
-Output Interface: HDMI (digital), VGA (analog), stereo audio
-Output Formats: HDMI 720p/960p/1080p, VGA low solution 15KHz/straight-through
-Conversion direction: analog signal to digital signal, analog signal output in low solution mode
-Dynamic de-interleaving: dynamically enhanced de-interleaving 480i, while supporting traditional Bob line-doubling de-fielding
-Low zero delay: no extra zero delay is added to ensure the original feel.
-No Lag: 240P/480I switch (such as Silent Hill Inventory) without re-synchronization. Displayed image does not lag
-Picture quality enhancement: support adjustable scanline, color quality, brightness gain and picture quality
-Power: DC 12V/1A

NOTE:
-Green synchronous switch adapts to RGBS signal 480P format only. Input of other formats cannot be opened, otherwise the signal can not be recognized.
-To use the low solution output function, select the direct or 15kHz option in the Settings screen.
-Scanline effect only supports 240p.
-Video cables are not included.

Package Includes:
1 x ODV GBS-C Converter
1 x 1.5M Power Cord
1 x User Manual
