maXpeedingrods Coilovers for VW Golf MK4 FWD 1997-2006, for VW Jetta/Bora MK4 FWD 1999-2006, Beetle MK4 FWD 1998-2010, Height Adjustable Coilovers Suspension Kit, Preset Damping Lowering Kit Red

【Perfect Fit】 for VW Golf MK4 (1J1) FWD 1997–2006; for VW Jetta/Bora MK4 (1J1) FWD 1999-2006; for VW New Beetle MK4 (9C1, 1C1) FWD 1998-2010; for Seat Leon Mk1 (1M1) FWD 1999-2006 【High Tensile Spring】Front: 5 kg/mm (280 lbs/in) & Rear: 3.5 kg/mm (196 lbs/in);. Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance 【Lower Height】The ride height is adjustable for 1-3 inches (not keep to original ride height), allowing you to have a more aggressive stance. This design helps eliminate turning noise and also improves steering feel and response 【Preset Damping Value】Maintain consistent and predictable handling characteristics, reduce the risk of overloading the suspension system 【Excellent Material】The product comes with 6061 aluminum alloy with T6 for increased hardness, high quality precision parts, high strength and durability. It is fully loaded and safe for installation

Application

for VW Golf MK4 (1J1) FWD 1997–2006
for VW Jetta/Bora MK4 (1J1) FWD 1999-2006
for VW New Beetle MK4 (9C1, 1C1) FWD 1998-2010
for Seat Leon Mk1 (1M1) FWD 1999-2006

Specification

Front top mount: OE top mount required
Rear top mount: OE top mount required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 5 kg/mm (280 lbs/in)
Spring rate Rear: 3.5 kg/mm (196 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62-99-62 mm
Spring length Front: 180 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

Feature

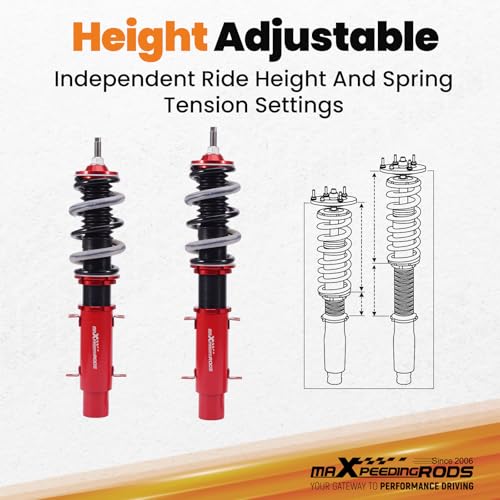

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. C N C machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
