MakerFocus TF-Luna Micro LiDAR Module 0.2-8m LiDAR Range Finder Sensor — Open-Box, 29% Off

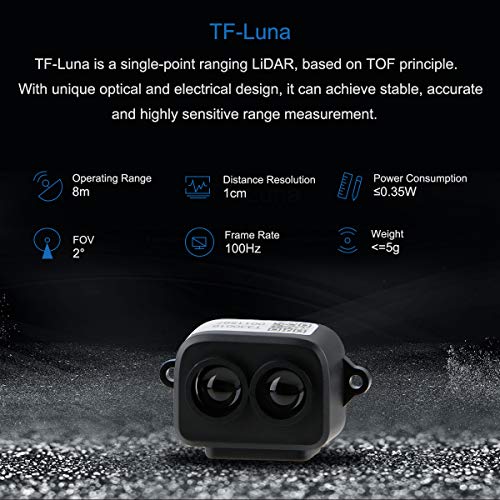

Working Principle: TF-Luna is a single-point ranging LiDAR, based on TOF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement Product Characteristics: The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios Extreme Cost Performance: Low-cost ranging LiDAR module, with 0.2-8m operating range. TF-Luna has a highly stable, accurate, sensitive range detection Slim Figure Yet Big Skill: Small size, easy to install and integrate; light weight, suitable for scenes with strict load requirements; low power consumption, suitable for battery-powered or low-power consumption scenarios Note: TF-Luna module comes with UART and I2C interface, the default is UART, if you need to use I2C interface, please set it yourself Description:
TF-Luna is a single-point ranging LiDAR, based on TOF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios

Performance:
Operating Range: 0.2m~8m, Operating range measured indoor based on a standard whiteboard with reflectivity 90%
Accuracy: ±6cm@ (0.2-3m) , ±2%@ (3m-8m) -- This is theoretical, real value may be different
Measurement unit: cm (Default)
Range resolution: 1cm
FOV: 2° -- This is theoretical, real value may be different
Frame Rate: 1~250Hz ( adjustable ) -- 100Hz as default and only any factor (500/n, n can be any integer in [2, 500]) of 500Hz are available
Power Consumption: ≤0.35W

Electrical Parameters:
Power supply voltage 3.7V-5.2V
Average current ≤70mA
Peak current 150mA
Power consumption ≤350mW
Communication signal level LVTTL (3.3V)
Communication Interface: UART / I2C

Main Product Features:
Small size
Light weight
Low power consumption
Low cost

Main Application Scenario:
Auxiliary focus
Elevator projection
Intrusion detection
Level measurement

Package Content:
1 * Single-point Ranging LiDAR(TF-Luna)
1 * Cable
