Maisutseb Pneumatic Tamper D9 Earth Sand Rammer Machine 0.63Mpa Concrete Tamping Machine Air Hammer Sander for Casting Sand Moulds,Concrete and Brick work

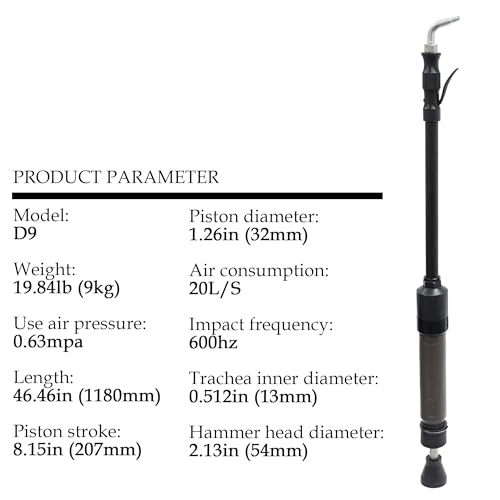

【Parameters】 Piston diameter:1.26in (32mm);Air consumption:20L/S;Impact frequency:600hz;Trachea inner diameter:0.512in (13mm);Hammer head diameter:2.13in (54mm);Use air pressure:0.63mpa;Length:46.46in (1180mm);Piston stroke:8.15in (207mm). 【Strong power for efficient operation 】 Pneumatic tampers are designed with a large diameter piston (1.26 inches/32 mm), which, together with an air consumption of up to 20L/S, can quickly transfer energy to the hammer head for efficient tamping results. It can be widely used in foundry industry, concrete work, brick production, furnace lining repair and so on. 【Product Overview】 Concrete Tamping Machine is one of the mechanised hand tools powered by compressed air. It is suitable for compacting medium-sized casting sand moulds, and can also be used for concrete and brickwork, etc. D9 type pneumatic tamping machine has strong working capacity and is suitable for tamping large casting sand moulds. 【High frequency impact to ensure quality】 The D9 Earth Sand Rammer has an impact frequency of up to 600 Hz, which can quickly compact the material and remove air, ensuring the compactness and uniformity of the pounding layer. This is of great significance for improving the quality of the project and prolonging the service life. 【Optimised design, durable and reliable】 The inner diameter of the air pipe (0.512 inch/13 mm) and the diameter of the hammer head (2.13 inch/54 mm) of the pneumatic tamper are optimised to ensure smooth airflow and low energy loss. Meanwhile, it is made of high-strength materials, which can adapt to various construction environments. 【Convenient operation and labour saving】 The Pneumatic tamping machine are compact and lightweight (specific weight should be determined according to the product model), easy to carry and operate. At the same time, its piston stroke (8.15 inches/207 mm) is moderate, which can ensure sufficient impact force and reduce fatigue during operation. Scope of application:
Pneumatic Tamping Machine is one of the mechanized hand tools powered by compressed air. Suitable for compacting medium-sized casting sand molds, and can also be used for operations such as concrete and brick blanks. D9 Pneumatic Tamping Machine has strong working ability and is suitable for tamping large casting sand molds
Precautions for use:
1. The use of compressed air should be maintained at 0.63mpa and purified.Excessive air pressure exacerbates wear and affects lifespan, while low air pressure prevents tools from fully utilizing their effectiveness.
2. A filter, pressure regulating valve, and oil-mist device should be installed in the air circuit. Without these three components, low viscosity lubricating oil should be injected from the air pipe every 2 to 3 hours.
3. Before connecting the tool to the air circuit, the air circuit should be opened first to remove any dirt from the pipeline.
4. Attention should be paid to taking care of tools during work, and they should not be used indiscriminately to avoid damage to parts.
5. Generally, maintenance is carried out once a month. During maintenance,the tools are disassembled, and the parts are cleaned with kerosene first.Then, some vulnerable parts are inspected, and parts with severe wear are replaced
