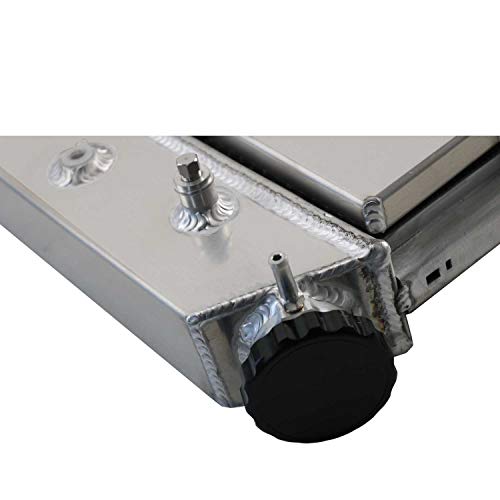

LZZLKUR 3 Row Aluminum Radiator with Shroud Fan Kits for 1973-1991 Chevy C/K 10 20 30 Pickup & Blazer GMC Jimmy Yukon Suburban, 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 — Open-Box, 11% Off

Name: LZZLKUR 3 Row Aluminum Radiator with Shroud Fan Kits for 1973-1991 Chevy C/K 10 20 30 Pickup & Blazer GMC Jimmy Yukon Suburban, 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91
Brand: LZZLKUR
SKU: awhd-us-b0gr5n7br3
Price: 257.90 USD
Availability: InStock

Brand: LZZLKUR

Condition: Used - VeryGood

$257⁹⁰

$289⁰⁰

-11% Save $31¹⁰

Updated: 13 days ago

Buy at Amazon.com

Description

【Extensive 1973-1991 GM Truck Compatibility】Designed for Chevy/GMC C/K/P/R Series Pickups, Blazer/Jimmy, Suburban, and Vans with V8 engines (28-1/4" wide core). OEM part numbers: 716, CC716, CU716, RAD716, DPI716, SBR716. Interchange numbers: 1599, 8011599, 3687, 2308, REA411599A. 【Aircraft-Grade AA5052 3-Row Crossflow for GM Trucks】This high-performance 3-row crossflow radiator is crafted from AA5052 aircraft aluminum—superior to standard T-3303 with better corrosion resistance, strength, and heat dissipation. Delivers exceptional cooling efficiency for your 1973-1991 Chevy/GMC V8 engine. 【Premium TIG-Welded Construction with CNC Components】100% TIG-welded with vacuum brazing—no epoxy. Features AA5052 aluminum shroud with shuttered design, billet aluminum CNC-machined filler neck with precision cap, and OEM-style brass petcock drain—far more reliable than plastic alternatives. Rigorously 100% leak tested. 【Complete Bolt-On Kit with Smart Thermal Management】Precision-fit core: 28-1/4"W x 19"H (overall: 33-1/4"W x 20-1/4"H). Features 1-1/2" driver-side inlet, 1-1/2" passenger-side outlet, and programmable thermostat relay kit (185°F on/165°F off). Includes 12" fan with 10 S-type blades (2,150 CFM). 【Complete Cooling System Package】Includes AA5052 aluminum radiator, CNC-machined cap, aluminum shroud with shuttered design, 12" fan, and programmable thermostat relay. Ensures stable operating temperatures for your classic GM truck during daily driving and heavy-duty use.

Fitment:

For 1990 Chevy Blazer / GMC V3500

For 1973-1993 Chevy/GMC C/K/R/V Series (C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35, R10, R20, V20, V30, V1500, V2500, V3500) including Pickup, Suburban, and Van models

For 1973-1991 Chevy/GMC P Series Vans (P10, P20, P30, P35, P1500, P2500, P3500)

For 1976-1990 GMC Jimmy

For 1973-1991 GMC C/K Series (C1500, C2500, C3500, K1500, K2500, K3500)

For 1973-1991 Chevy K5 Blazer

Engine Sizes Available: 4.1L, 4.3L, 4.8L, 5.0L, 5.7L, 6.2L, 6.6L, 7.4L

Interchange Part Number: 716, CC716, CU716, DPI716, CU1599, EC716, AE716, MC716

Other Part Number: 438716, 433716, 1605-370200, 0716-2AA, CR1599

Part Number: 1599, 8011599, 3687, 2308, REA411599A, SPTCU1599

Radiator Size：

3-Row of tubes Core Racing Design

Core Size: 19" high x 28-1/4" wide

Overall Size: 20-1/4" high x 33-1/4" wide

Upper inlets: 1 1/2" located on the driver side

Lower outlets:1 1/2" located on the passenger side

Radiator Cap: CNC Precision Machined Radiator Cap

Crafts:100% Tig Welded,No Epoxy

Radiator Drain Plug: OEM Style Brass Petcock Drain.

Please Check the Size Before You Buy!

Fan Specification:

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 80W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Thermostat Kit:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b0gr5n7br3
Model:: LZZLKUR-00283
Country:: US
ASIN:: B0GR5N7BR3
UPC:: 742491452295
